behr KEX 2000 F/TK

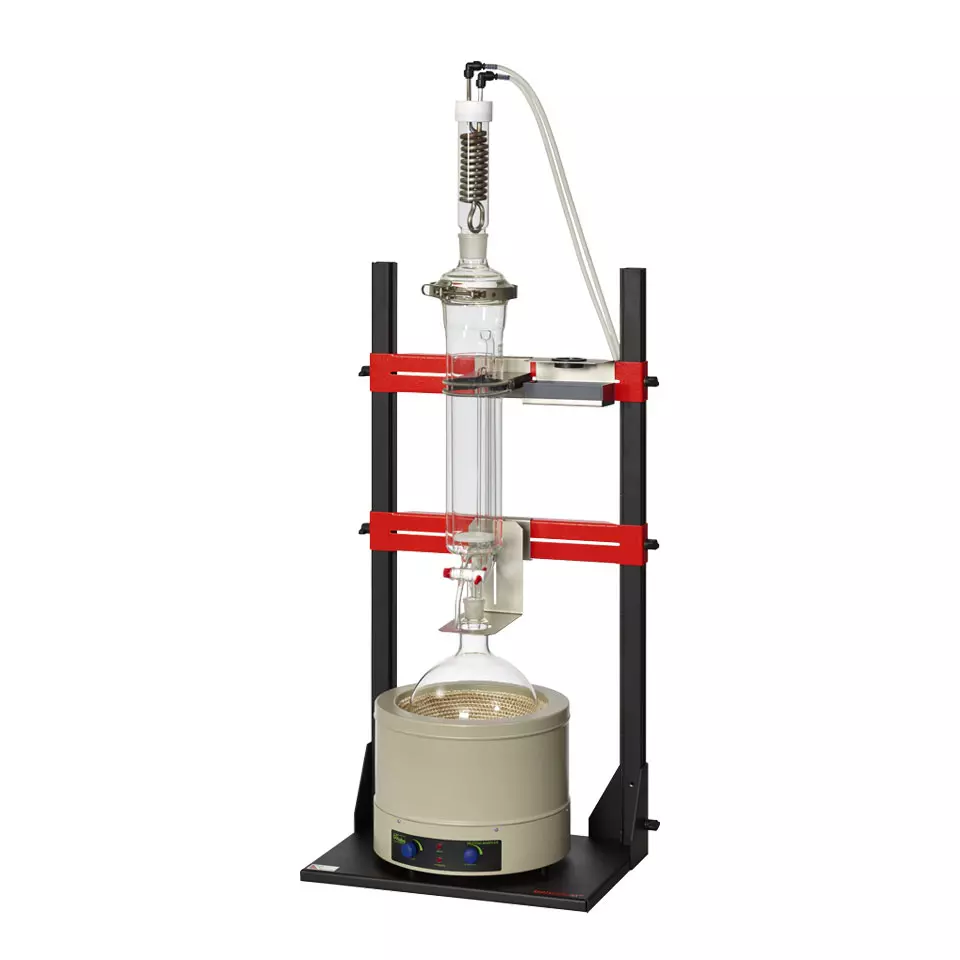

2000 ml extraction - 5000 ml round bottom flask - Titanium condenser - Extraction Apparatus (1 sample)
Areas of use

Food analysis › Oil & fat analysis › Beverage industry › Feed analysis › Agricultural industry › Environmental analysis › Chemicals & plastics industry › R&D laboratories

Parameter to be analyzed

Extract content › Fat › Free fat › Oil and fat › Oil content › PCBs › Residual resin › Pesticides › Dioxins › Chloride content › Bound fat › Non fat › Caffeine › Tein › Fiber

Sample material

Ash › Soils › Fish and fish products › Meat and meat products › Feed and raw materials › Coffee › Sludge › Compost › Milk and milk products › Nutrition › Oilseeds › Tea › Cellulose

For classic fat extraction

behrotest® serial extraction devices are the economical and user-friendly solution for classic Soxhlet and fat extraction:

With behr hydrolysis units, acid digestion is possible before extraction (determination of total fat content according to Weibull and Stoldt).

  • Complete with reaction vessels, extraction spacers and coolers
  • The heating mantle in use is continuously variable and has an integrated magnetic stirrer.
  • Extractors with specially developed lifting tube ("Böckerhoff" type) guarantee homogeneous results at all sample locations
  • Practical stand for holding condensers securely between extractions
  • Holders for secure fixation of extraction adapters after removal of the sample vessels
  • F models: The use of extractors with a stopcock does away with the need for any additional distillation after extraction

  2000 ml extraction - 5000 ml round bottom flask - Titanium condenser - Extraction Apparatus (1 sample) - KEX 2000 F/TK [B00722652]
KEX 2000 F/TK
Item number B00722652
Packaging quantity 1
Controller Nein
Power consumption (in W) 800
Sample positions 1
Capacity (in ml) 5,000.00
Flask size (in ml) 5000
Extractor size (in ml) 2000

Your benefits at a glance

  • Practical stand for holding condensers securely between extractions
  • Drip tray
  • F models: The use of extractors with a stopcock does away with the need for any additional distillation after extraction
  • PTFE cocks no fixation, does not need lubrication
  • Holders for secure fixation of extraction adapters after removal of the sample vessels
  • Extractors with specially developed lifting tube ensure homogeneous extraction cycles at all sample positions
  • Extractor sizes from 30 ml to 5000 ml
  • Condenser with screw connection

The heating mantle in use is continuously variable and has an integrated magnetic stirrer. The integrated stirring function ensures an optimum heat distribution and prevents boiling delay.

  • Food analysis
  • Oil & fat analysis
  • Beverage industry
  • Feed analysis
  • Agricultural industry
  • Environmental analysis
  • Chemicals & plastics industry
  • R&D laboratories
Content Filesize last updated
(PDF) Download Flyer Siedeverzug 166.4 KB 24.11.2017
(PDF) Download P Extraktion 8.8 MB 11.05.2023
(PDF) Download P Futtermittelanalytik 1.9 MB 11.05.2023

Article

Art.-No.
KEX 2000 F/TK Compact system for 2000 ml extraction with stopcock, round-bottomed flask 5000 ml and titanium condenser
B00722652
