behr ASM-IR

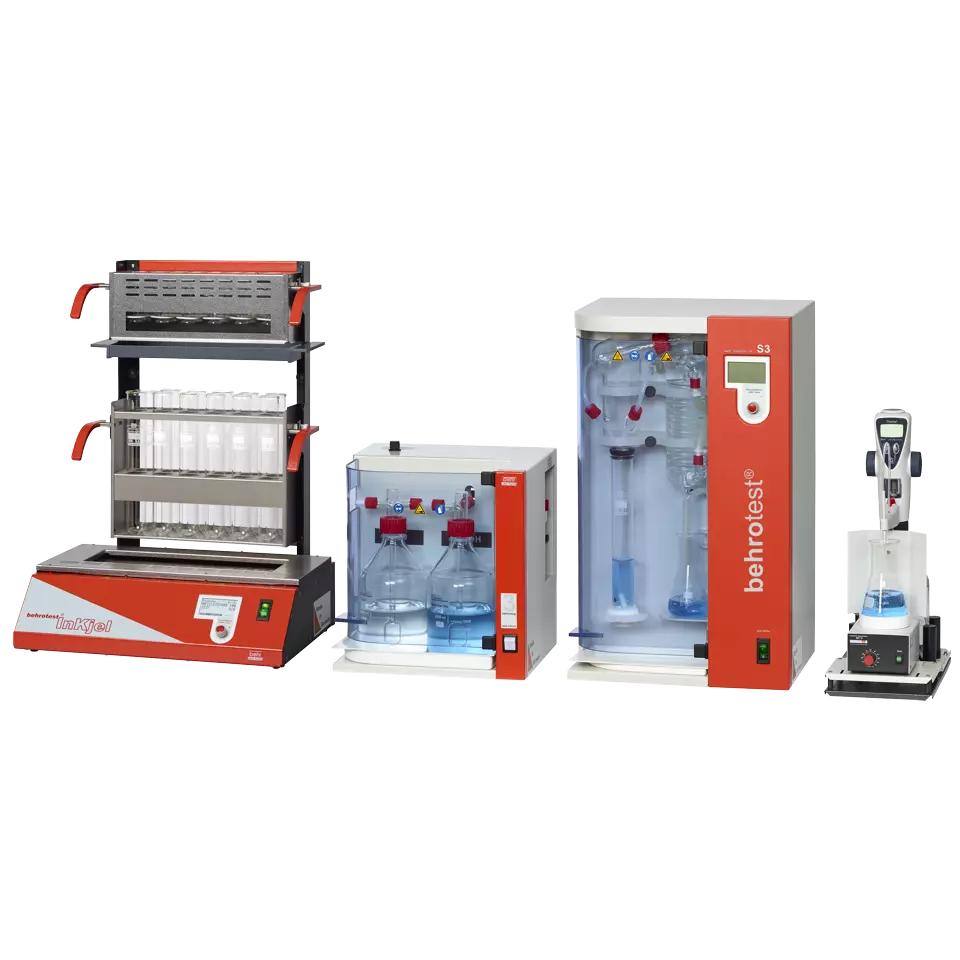

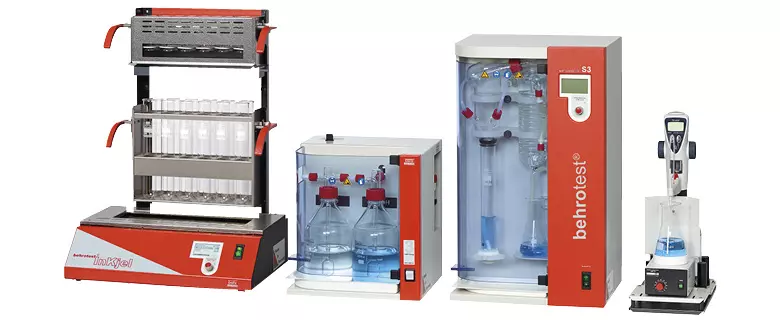

Complete configuration for nitrogen determination incl. titration: Workstations type ASM
Complete configuration for nitrogen determination incl. titration: Workstations type ASM
Programmable digestion unit for 12 samples (infrared: InKjel 1225 P) simultaneously
Complete system with digestion vessels, frame and extraction hood.
- High-performance heating and extraction hood with exhaust collector.
- behr one-button operation for extremely easy and quick programming
- Menu navigation in country language
- 25 freely configurable programs for block temperature and digestion time
- Storeable applications
Exclusive high-performance configuration
Exclusive high-performance configuration
- Particularly simple and fast programming
InKjel 1225 P
Digestion with infrared
Complete system with multi-level console, fume extraction unit, sample rack and glass digestion vessels.
Rapid sample heating by means of direct heating via the infrared heater.
Quartz infrared heaters reach a temperature of 830°C in 1 min.
Various application possibilities: Rack for reaction vessels with 250 ml, 500 ml and 750 ml.
With 500 ml and 750 ml vessels also suitable for nitrogen determination in water analysis.
Easy conversion for various vessel sizes through the exchange of rack and fume extraction unit.
Quick and problem-free digestion also for difficult samples: 10 freely configurable programs for block temperature and digestion time
behr one-button operation for extremely easy and quick programming
Menu navigation in country language
Windows software lets the user transfer application-specific time/temperature profiles via the RS232 interface bidirectionally between one or more devices and a PC
A library with standard applications is already included on the CD.
behrosog 3
Efficient extraction system
Extremely environmental friendly
No connection to water supply needed
infinite regulation of air flow quantity 16 ... 40 l/min
easy exchange of liquids through simply emptying of glass vessels
PTFE-coated double-head membrane pump
Integrated droplet separator
Gas wash bottle 2000 ml for cooling hot gases
Gas wash bottle 2000 ml for neutralizing
On/off switch outside hazard zone
Transparent safety door
Removable safety drip tray
S3
Safe and high-performance steam distillation units
behr steam distillation units are not just high performance units and reliable partners in your daily laboratory routine. An essential factor in the development and design of the devices was also the safety of the user
Door contact safety switch that is automatically triggered in the event of overload or short circuit
Mechanical overpressure safety valve against excessive pressure in the steam generator
Vessel monitoring (no distillation possible if no vessel has been inserted)
Door contact switch that automatically deactivates the distillation unit if the door is open
Resettable overtemperature thermostat (in the case of water shortage in the steam generator)
Cooling circuit monitoring by means of pressure switch
Temperature-regulated steam heating phase and pressure control via solenoid valve
Adapter for use with various digestion vessels
Our practical adapter ensures that you can also use digestions vessels in our behrotest® steam distillation device from other manufacturers that deviate from standard sizes.
STI
A screen serves as a neutral background and allows the user to determine the color change at the end of the titration precisely. This way, titration will always be carried out under similar visual conditions. This improves the precision and the reproducibility of results.
The precise positioning of the reaction vessels in the holder on the top of the magnetic stirrer also contributes to this. The angled wing of the screen protects against lateral dazzling light.
Content | Filesize | last updated | |
(PDF) Download | P Kjeldahl | 3.4 MB | 30.10.2024 |
(PDF) Download | P Futtermittelanalytik | 1.9 MB | 30.10.2024 |
Article
Art.-No. | |||
---|---|---|---|
ASM-IR | Kjeldahl exclusive - Complete configuration for nitrogen determination incl. titration | B00637680 |
![]() |
