behr R 104 T-SK, R 106 T-SK

Twisselmann Extraction - Serial heating device with flat bottom flask (6 places)
Areas of use

Oil & fat analysisFeed analysisAgricultural industryEnvironmental analysisChemicals & plastics industryCosmetics industryPharmaceuticals industryR&D laboratories

Parameter to be analyzed

Extract contentFatFree fatOil and fatOil contentResidual resinBound fatNon fatCaffeineTeinFiber

Sample material

BeansFish and fish productsMeat and meat productsFeedFeed and raw materialsShrimpsCoffeeCocoa and cocoa productsLiverAlmondsMarzipanMilk and milk productsNutritionOilseedsOlivesMustard seedsSweetsTeaCellulose

behrotest® serial extraction device for hot extraction in accordance with Twisselmann

Twisselmann Extraction - Serial heating device with flat bottom flask (6 places)

Extraction according to Twisselmann is a continuous hot extraction. It functions similar to Soxhlet extraction. However the temperature in the Twisselmann extractor is very hot in the sample, i.e. close to the boiling point of the solvent. This improves solubility and shortens the extraction time.

The higher extraction temperature is due to the fact that the condensed solvent flows from above and the ascending hot solvent vapor flows from below through the extraction sleeve simultaneously and mix there. The temperature of this mixture is far higher than the temperature of the condensed solvent.

Compared to Soxhlet extraction, the extraction time with Twisselmann extraction is reduced by up to 50%.

  Twisselmann Extraction - Serial heating device with flat bottom flask (6 places) - R 104 T-SK [B00707366] Twisselmann Extraction - Serial heating device with flat bottom flask (6 places) - R 106 T-SK [B00707715]
R 104 T-SK R 106 T-SK
Item number B00707366 B00707715
Packaging quantity 1
Width (in cm) 53.00
Depth (in cm) 32.00
Height (in cm) 74.00
Weight (in kg) 22.00
Controller Nein
Power consumption (in W) 1500
Current consumption (in A) 7
Sample positions 4 6
Capacity (in ml) 250.00
Flask size (in ml) 250
Extractor size (in ml) 100
  • Power is individually adjustable for each sample position
  • Cooling water distribution ensures even cooling at all sample positions
  • Practical stand for holding condensers securely between hot extractions
  • Holders for secure fixation of extraction adapters after removal of the sample vessels

Price effective and user-friendly devices for hot extraction in accordance with Twisselmann

  • Oil & fat analysis
  • Feed analysis
  • Agricultural industry
  • Environmental analysis
  • Chemicals & plastics industry
  • Cosmetics industry
  • Pharmaceuticals industry
  • R&D laboratories
Content Filesize last updated
(PDF) Download Flyer Siedeverzug 166.4 KB 24.11.2017
(PDF) Download P Extraktion 8.8 MB 11.05.2023
(PDF) Download P Futtermittelanalytik 1.9 MB 11.05.2023

Article

Art.-No.

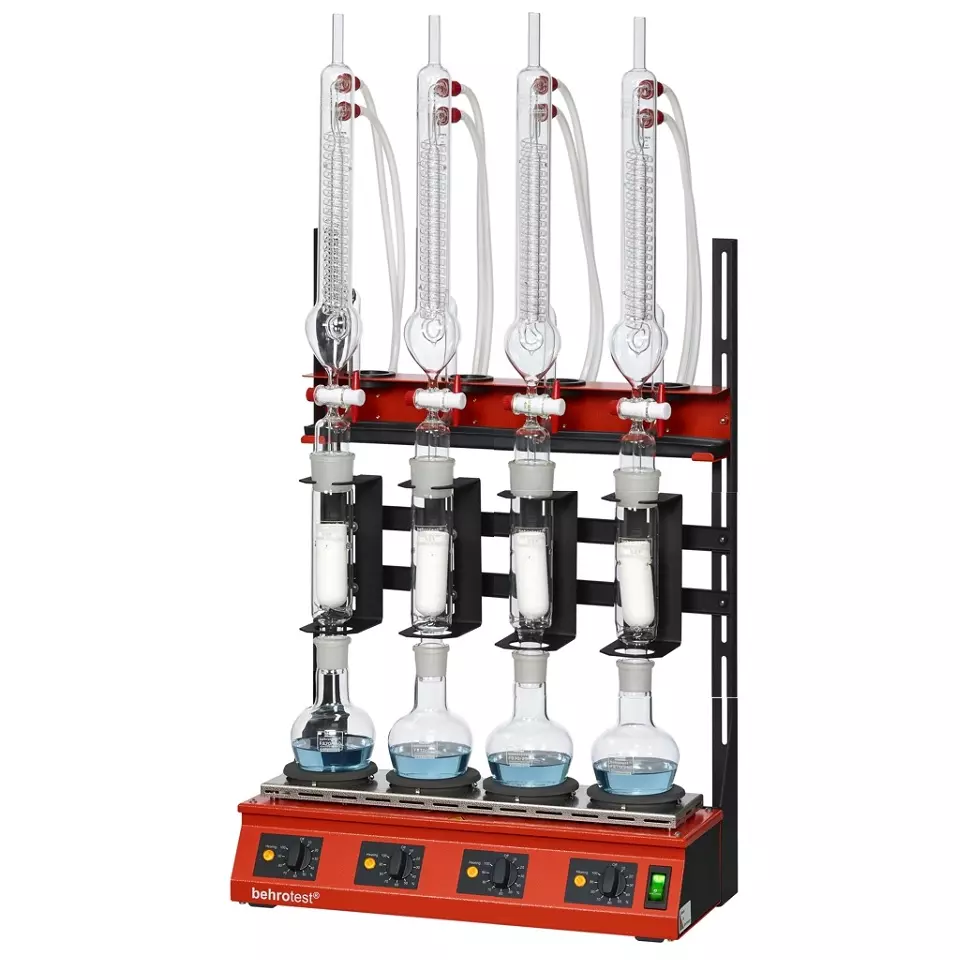

R 104 T-SK behrotest serial heating device extraction in accordance with Twisselmann for 4 positions simultaneously with flat bottom flask 250 ml
B00707366

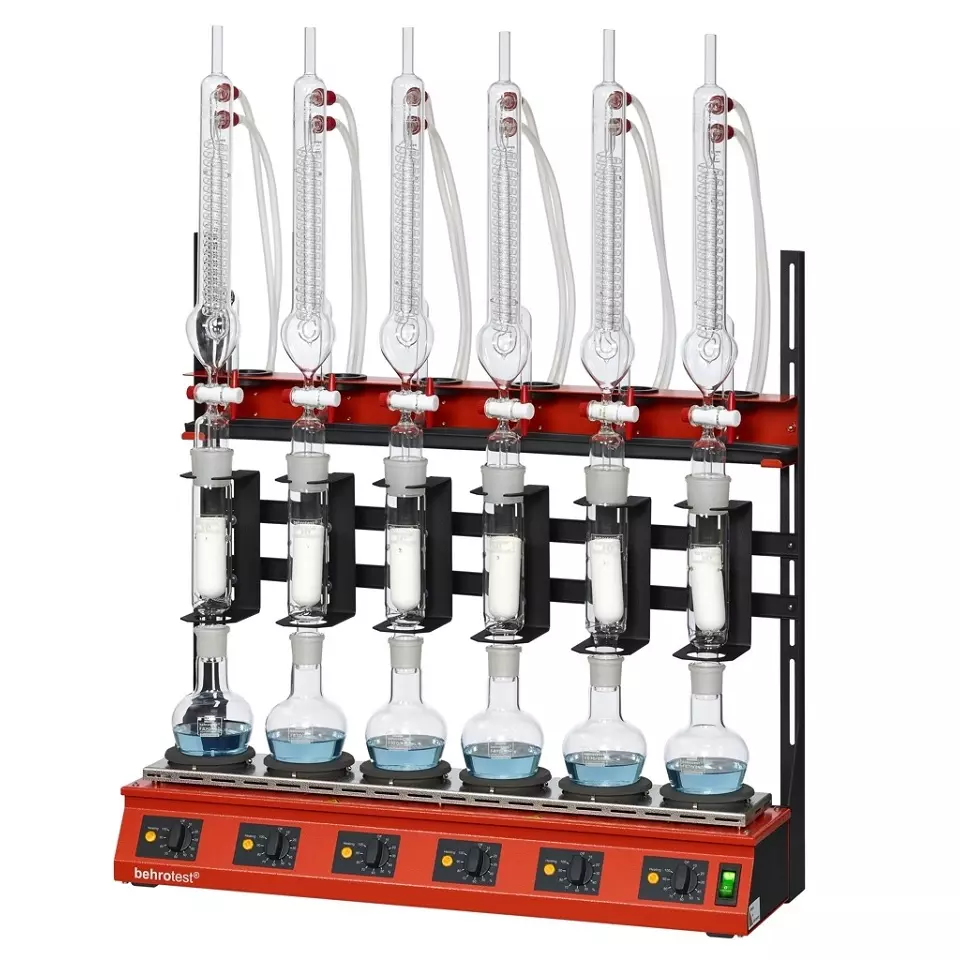

R 106 T-SK Complete for 6 positions simultaneously with flat bottom flask 250 ml
B00707715

Accessories

Extraktion - Extractor (EZT) - EZT [B00217978]

EZT

Extractor, 100 ml, for Twisselmann extractors
B00217978
Extraktion - Reflux condenser (RFKT) - RFKT [B00217979]

RFKT

Condenser for 100 ml Twisselmann extractors
B00217979
Chemische Bestimmungen - sleeves (PTFE) - PTFE 45 [B00217909]

PTFE 45

PTFE sleeve for 100 ml and 250 ml extractors
B00217909
Extraktion - Extraction sleeves (EX HS) - EX 100 HS [B00600442]

EX 100 HS

for EZ 100 (EZ 100/H), package with 25 pieces
B00600442
Extraktion - Sleeve stand (RIP) - RIP 4 [B00602349]

RIP 4

for 4 extraction sleeves up to ø 38 mm
B00602349
Extraktion - Sleeve stand (RIP) - RIP 6 [B00602350]

RIP 6

for 6 extraction sleeves up to ø 38 mm
B00602350
Extraktion - Round flask (RK) - RK 250 [B00218499]

RK 250

Round-bottomed flask 250 ml, for 60 ml and 100 ml extraction, (NS 29/32)
B00218499
Extraktion - Flat bottom flask (FB) - FB 70/250 [B00693984]

FB 70/250

Flat-bottomed flask 250 ml, for 100 ml extraction
B00693984
Other laboratory instruments - Monitoring unit (Cooling water monitor) - WD 30 [B00645358]

WD 30

Monitoring unit with two flow sensors and solenoid valve, as well as cables to connect it to the controller (1.5 m)
B00645358
Rückflussdestillation - Drip trays (AWR) - AWR [B00660644]

AWR

behrotest collection trough made of stainless steel for serial heating unit
B00660644
