behr R 304, R 304 S

30 ml extraction - 100 ml round bottom flask - glass cooler - Compact system (4 samples)
Areas of use

Food analysisOil & fat analysisBeverage industryFeed analysisAgricultural industryEnvironmental analysisChemicals & plastics industryCosmetics industryPharmaceuticals industryR&D laboratories

Parameter to be analyzed

Extract contentFatFree fatOil and fatOil contentPCBsResidual resinPesticidesDioxinsChloride contentBound fatNon fatCaffeineTeinFiber

Sample material

AshSoilsFish and fish productsMeat and meat productsFeed and raw materialsCoffeeSludgeCompostMilk and milk productsNutritionOilseedsTeaCellulose

For classic fat extraction

30 ml extraction - 100 ml round bottom flask - glass cooler - Compact system (4 samples)

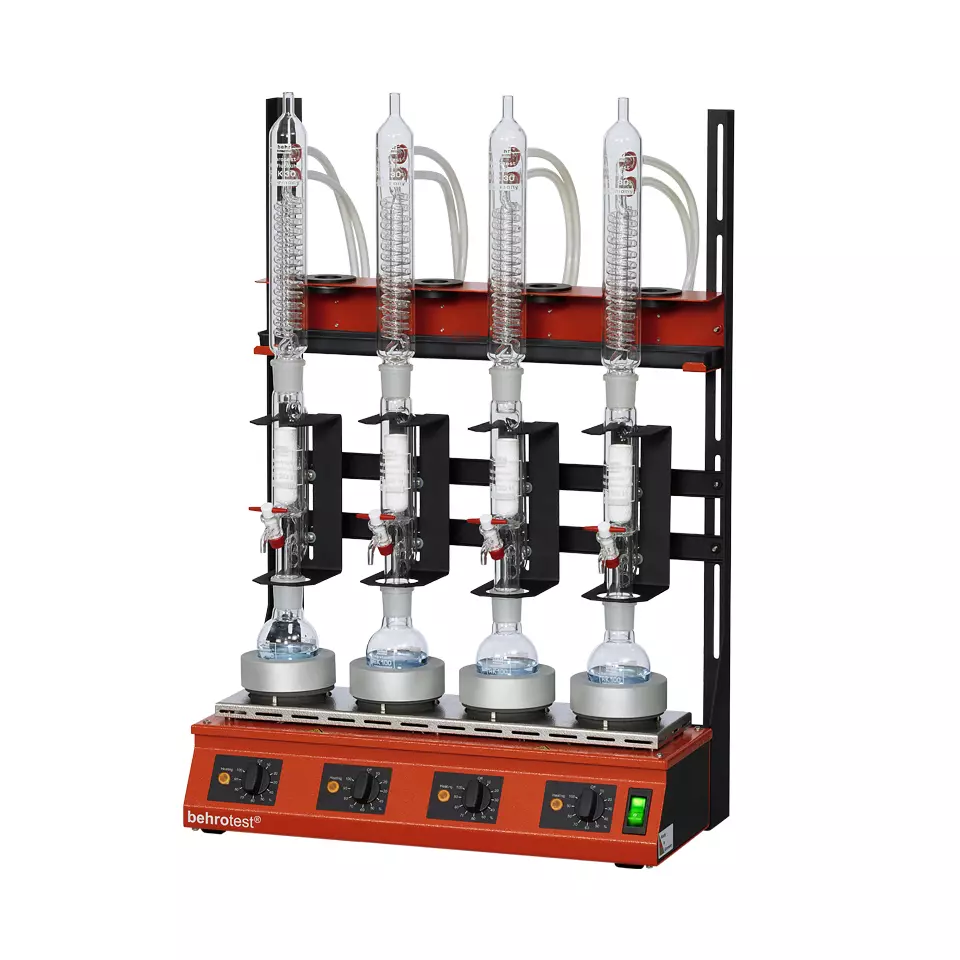

Complete compact extraction system with basic rack, heating device, holder, hoses and glassware (reaction flasks, extractor, Dimroth condenser for extraction). Infinitely variable heating regulation After the extraction cycle, the compact system removes the solvent, by means of a discharge valve on the extractor directly into the reservoir.

Includes sample package, extraction sleeves and boiling stones.

behr equipment for Soxhlet extraction comply with the most various requirements of daily laboratory routines.

With behr hydrolysis units, acid digestion is possible before extraction (determination of total fat content according to Weibull and Stoldt).

  • Practical holders for condenser and extraction adapter for secure placement between extractions
  • Extractor sizes from 30 ml to 1000 ml
  • Condenser with screw connections

  30 ml extraction - 100 ml round bottom flask - glass cooler - Compact system (4 samples) - R 304 [B00218433] 30 ml extraction - 100 ml round bottom flask - glass cooler - Compact system (4 samples) - R 304 S [B00218443]
R 304 R 304 S
Item number B00218433 B00218443
Packaging quantity 1
Weight (in kg) 19.00
Controller Nein
Sample positions 4
Capacity (in ml) 100.00
Flask size (in ml) 100
Extractor size (in ml) 30

Compact device with homogeneous extraction cycles

  • Compact equipment
  • specially developed lifting tube for homogeneous extraction cycles
  • the use of extractors with a stopcock does away with the need for any additional distillation after extraction (direct redirection of solvent to the reservoir)
  • Food analysis
  • Oil & fat analysis
  • Beverage industry
  • Feed analysis
  • Agricultural industry
  • Environmental analysis
  • Chemicals & plastics industry
  • Cosmetics industry
  • Pharmaceuticals industry
  • R&D laboratories
Content Filesize last updated
(PDF) Download Flyer Siedeverzug 166.4 KB 24.11.2017
(PDF) Download P Extraktion 8.8 MB 11.05.2023
(PDF) Download P Futtermittelanalytik 1.9 MB 11.05.2023

Article

Art.-No.
R 304 behrotest serial heating unit for 30 ml extraction for 4 positions simultaneously - round flasks
B00218433
R 304 S behrotest serial heating unit for 30 ml extraction for 4 positions simultaneously - flat bottom flasks
B00218443

Accessories

Extraktion - Extraction sleeves (EX HS) - EX 30 HS [B00600440]

EX 30 HS

for EZ 30 (EZ 30/H), package with 25 pieces
B00600440
Extraktion - Reflux condenser (RFK) - RFK 30 [B00217955]

RFK 30

Reflux condenser for 30 ml extractors
B00217955
Extraktion - Round flask (RK) - RK 100 [B00218501]

RK 100

Round-bottomed flask 100 ml, for 30 ml extraction, (NS 29/32)
B00218501
Chemische Bestimmungen - sleeves (PTFE) - PTFE 29 [B00217905]

PTFE 29

PTFE sleeves RG 2, SR 2 and SR 2 Q, set of 12 pieces
B00217905
Extraktion - Sleeve stand (RIP) - RIP 4 [B00602349]

RIP 4

for 4 extraction sleeves up to ø 38 mm
B00602349
Extraktion - Sleeve stand (RIP) - RIP 6 [B00602350]

RIP 6

for 6 extraction sleeves up to ø 38 mm
B00602350
Extraktion - Deposit pit (AM) - AM 100/SET [B00217701]

AM 100/SET

behrotest positioning cradles 100 ml round flasks incl. distance inlay
B00217701
Other laboratory instruments - Monitoring unit (Cooling water monitor) - WD 30 [B00645358]

WD 30

Monitoring unit with two flow sensors and solenoid valve, as well as cables to connect it to the controller (1.5 m)
B00645358
Rückflussdestillation - Drip trays (AWR) - AWR [B00660644]

AWR

behrotest collection trough made of stainless steel for serial heating unit
B00660644
Extraktion - EXK300 - EXK300 [B00711550]

EXK300

behrotest Desiccator, borosilicate glass 3.3, with plastic knob and porcelain plate (DN 300)
B00711550
Extraktion - Boiling stones (SIST) - SIST 100 [B00217914]

SIST 100

Boiling stones, 100 g
B00217914
