behr FH 10, FH 6

Biological determination - Eudiometer unit (Determination of rotting behavior)
Areas of use

Environmental analysis - especially waste water & water

Parameter to be analyzed

Biodegradability › Determining rotting properties

Sample material

Sludge › Cleaning and washing agents › Soaps › Creams › Medicinal products

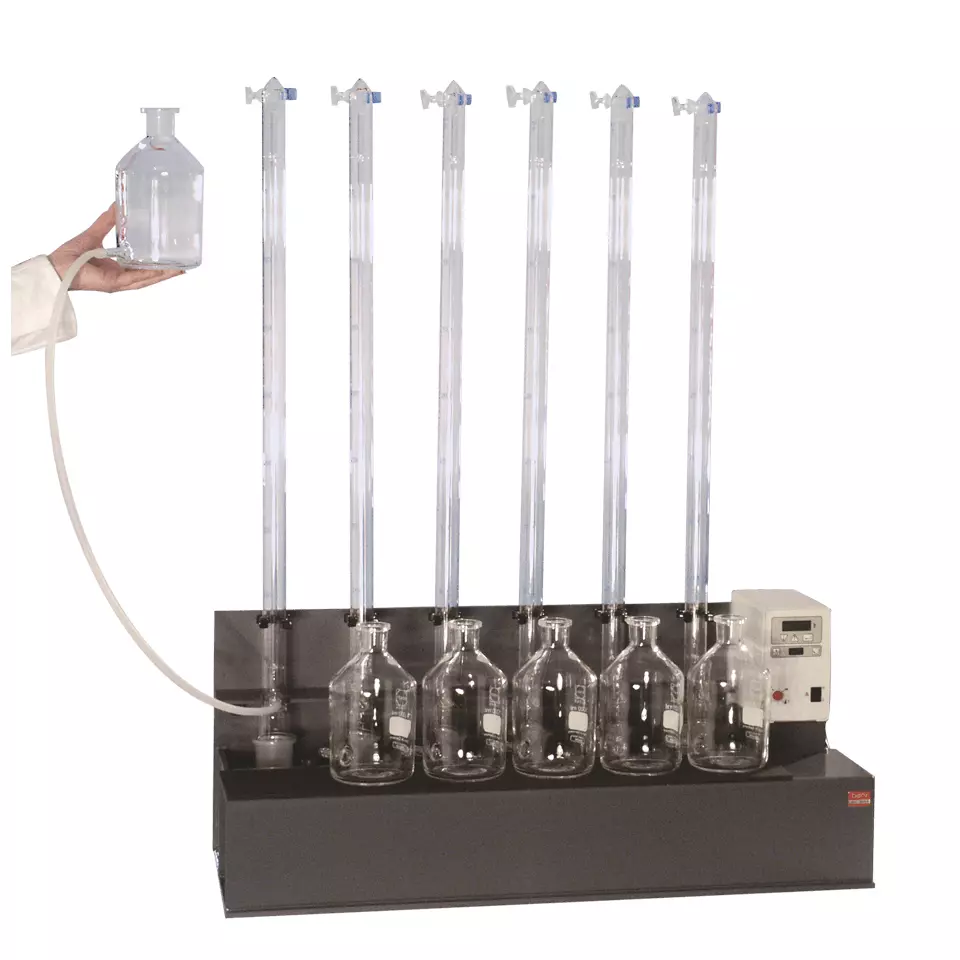

Equipment for the determination of rotting behavior

Complete equipment consists of:

  • Tempering bath with thermostat for 6 eudiometer units incl. clamping device for eudiometer tubes
  • 6 eudiometer units with stand bottles, 500 ml, eudiometer tubes with scaling, cock and connection tubes with level vessels

  Biological determination - Eudiometer unit (Determination of rotting behavior) - FH 6 [B00217628]
FH 10 FH 6
Item number B00217624 B00217628
Packaging quantity 1
Width (in cm) 85.00
Depth (in cm) 33.00
Height (in cm) 110.00
Weight (in kg) 16.00
Controller Nein
Sample positions 1 6
Capacity (in ml) 500.00
Bottle size (in ml) 500
  • Massive PVC thermostat tank (light protection)
  • Optional with serial magnetic stirrers for under-water deployment in water bath at constant temperature.
  • The equipment for the determination of the rotting behavior provides information about the aerobic degradation of sludge measured in digester gas production.
  • With outer control device for stirring in the 6 bottles of 500 ml each
  • Environmental analysis - especially waste water & water

No downloads present.

Article

Art.-No.
FH 10 Eudiometer unit in acc. with DIN/DEV 38414 p 8. Eudiometer tube, stand and level bottle
B00217624
FH 6 Tempering bath of PVC, incl. thermostat for 6 eudiometer units in accordance with DIN/DEV 38414 S 8
B00217628

Accessories

RM 6

Serial magnetic stirrer, for use in water bath FH 6, for stirring 6 bottles, each 500 ml, including separate control device
B00217629
