behr EX 1000

Chemical determination - Extraction unit (Hydrocarbon determination)
Areas of use

Environmental analysis

Parameter to be analyzed

Hydrocarbons

Sample material

Waste waterOils

Determination of hydrocarbon

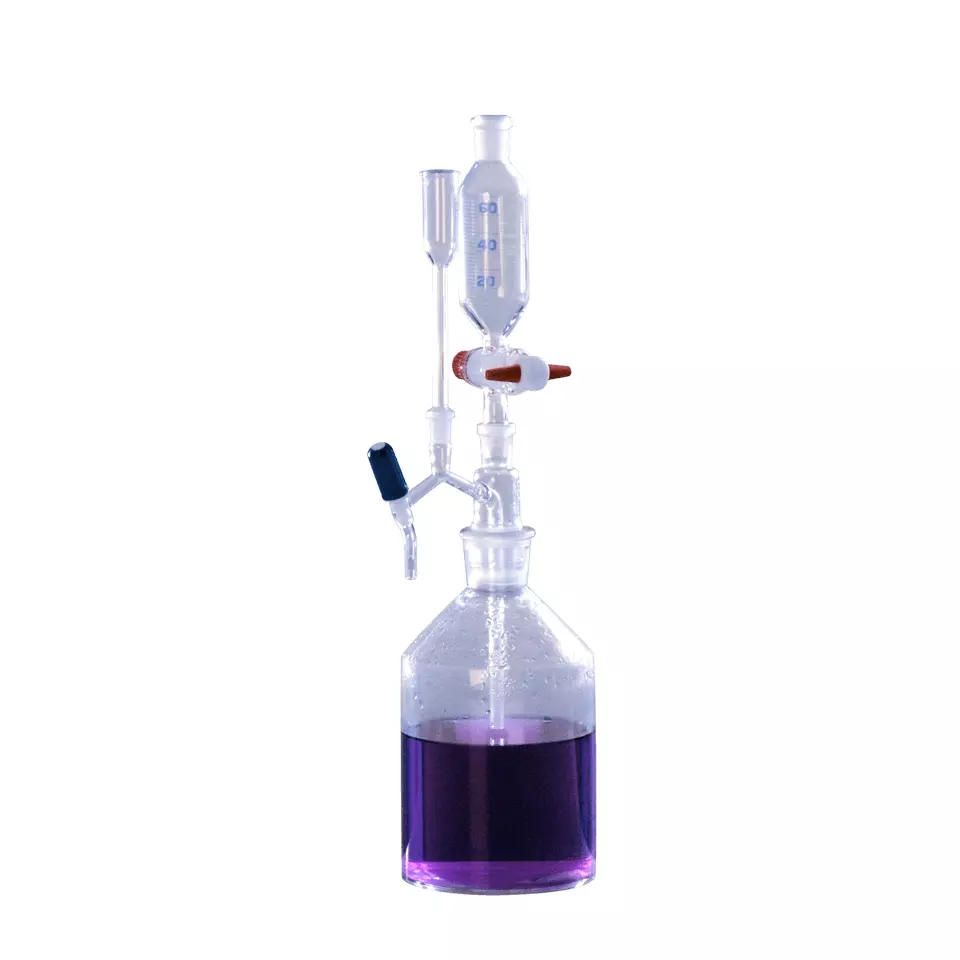

Extraction unit EX 1000

Extraction unit EX 1000

The sampling bottle PFL is ideal for direct extraction in the sense of ISO 9377-2. With their solid glass stopper, they also offer decisive benefits in terms of handling and safety.

The funnel separator facilitates the separation of the organic phase. The individual function groups of the separator can be separated from one another. This way, the user can transfer the organic phases quickly and easily in one go to the clean-up column. Plus, the individual function groups are particularly easy to clean.

Clean-up station CUS 2

The behrotest® clean-up column with glass frit corresponds exactly to the specifications of ISO 9377-2.

The practical double stand offers a stable stand for two complete clean-up units with drip funnels, clean-up columns and Kuderna-Danish flasks. With this, the entire clean-up step for two samples can be performed simultaneously - without interruption by time-consuming manipulation of devices or samples.

Nitrogen station KOSTA 2

The two stage concentration of the organic phase is concluded by reducing the extract down to less than 1 ml under a mild nitrogen stream.

In the behrotest® nitrogen station, a distributor leads the nitrogen flow via two individually adjustable tubes into the Kuderna-Danish flasks. This way, two samples can be reduced simultaneously in accordance with ISO 9377-2.

Centrifuge tube ZG50

For the dissolution of a stable emulsion in accordance with ISO9377-2, ISO17993 and DEV-F18

  • The sampling bottle PFL is ideal for direct extraction in the sense of ISO 9377-2. With their solid glass stopper, they also offer decisive benefits in terms of handling and safety.
  • The funnel separator facilitates the separation of the organic phase. The individual function groups of the separator can be separated from one another. This way, the user can transfer the organic phases quickly and easily in one go to the clean-up column. Plus, the individual function groups are particularly easy to clean.

  Chemical determination - Extraction unit (Hydrocarbon determination) - EX 1000 [B00217637]
EX 1000
Item number B00217637
Packaging quantity 1
Controller Nein
Sample positions 1
  • Environmental analysis

No downloads present.

Article

Art.-No.
EX 1000 behrotest extraction unit for the determination of the hydrocarbon index in acc. with H 53
B00217637
