behr TRS 300

COD single components - Control device (Temperature and time control unit)
Areas of use

Parameter to be analyzed

Sample material

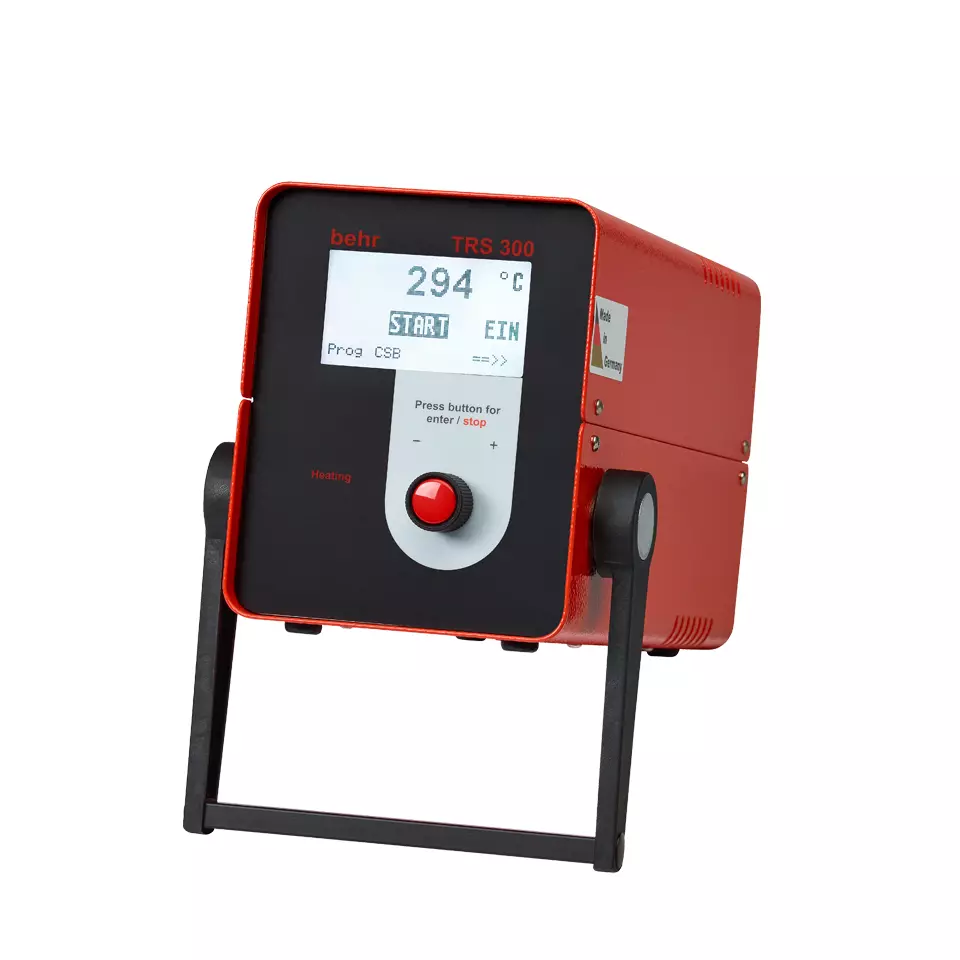

Programmable temperature and time controller TRS 300

The TRS 300 features a special factory-set COD program. In "COD" mode, it heats to a temperature 20°C above the specified setpoint temperature. After sample insertion, the setpoint temperate increased by 20°C is retained for another 6 minutes This procedure ensures compliance with the ISO specification of heating to 148°C within 10 minutes and outstanding temperature stability during the subsequent reaction process.

  • behr single-button operation for particularly fast and easy programming
  • Menu navigation in local language
  • 10 freely configurable programs for block temperature and digestion time
  • The built-in safety features shut down the connected devices in case of short circuit and temperature sensor failure

  COD single components - Control device (Temperature and time control unit) - TRS 300 [B00217820]
TRS 300
Item number B00217820
Packaging quantity 1
Width (in cm) 15.00
Depth (in cm) 32.00
Height (in cm) 17.50
Weight (in kg) 3.20
Power consumption (in W) 2200
Programs 11
Temperature range max. (in °C) 450
Time setting range 1 – 999 min, digitally adjustable
Sensor PT 100 – Three-wire circuit, connection via three-pole diode connector
Temperature setting range 0 – 450 °C, digitally adjustable
  • behr single-button operation for particularly fast and easy programming
  • Menu navigation in local language
  • 10 freely configurable programs for block temperature and digestion time
  • The built-in safety features shut down the connected devices in case of short circuit and temperature sensor failure
Content Filesize last updated
(PDF) Download P CSB Bestimmung 2.1 MB 12.05.2023

Article

Art.-No.
TRS 300 Temperature and time-controlled, up to 10 temperature-time combinations can be programmed
B00217820
