behr VFZ 6, VFZ 12

Further determinations - Compact system (Saponification value)
Areas of use

Food analysis

Parameter to be analyzed

Saponification number

Sample material

Oils & greases

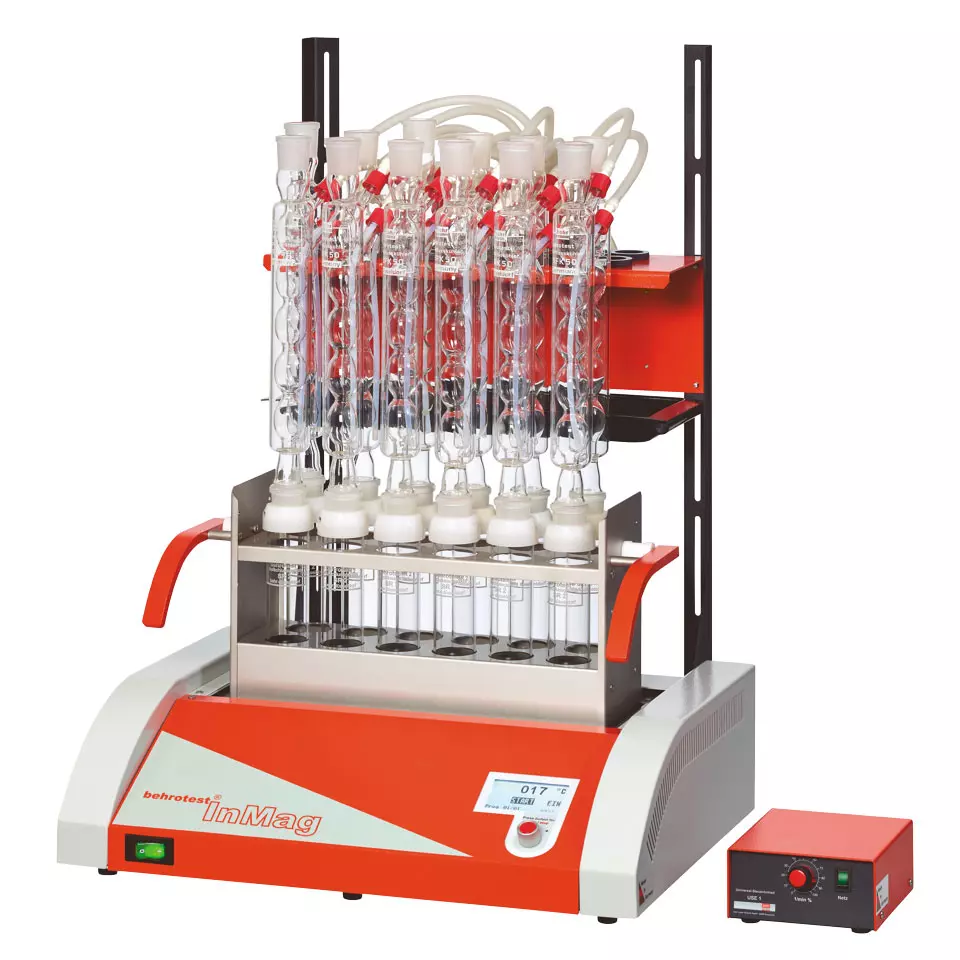

behrotest® distillation unit for the determination of saponification value

The complete programmable distillation unit consists of:

  • 6 or 12 round digestion vessels SR 2, 250 ml, with standard ground joint NS 29 and container ring made of PVDF
  • Compact rack with cooler frame and holders
  • behr high performance glass coolers
  • Cooling water distribution strip ensures uniform cooling at sample positions
  • 25 freely configurable programs for block temperature and distillation time
  • high-quality quartz infrared heaters (1500 W)
  • integrated magnetic stirrer with the separate control unit
  • Tubing

Optionally available in the behr program is the manual titration station HTI 9. The HTI 9 consists of a burette with digital display and a magnetic stirrer with fitting holder for SR2 reaction vessels.

  Further determinations - Compact system (Saponification value) - VFZ 6 [B00696815] Further determinations - Compact system (Saponification value) - VFZ 12 [B00696816]
VFZ 6 VFZ 12
Item number B00696815 B00696816
Width (in cm) 70.00
Depth (in cm) 50.00
Height (in cm) 100.00
Controller Nein
Frequency (in Hz) 50/60
Power consumption (in W) 1500
Sample positions 6 12
Glass vessel size (in ml) 250
  • Space-saving behrotest compact apparatur
  • Perfect dimensions for every laboratory table
  • Easy to handle
  • Cooling water distribution strip ensures uniform cooling at sample positions
  • Simultaneous heating and stirring guarantee high recovery rates and exact analysis results
  • Food analysis
Content Filesize last updated
(PDF) Download Prospekt Futtermittelanalytik 2.9 MB 24.11.2017

Article

Art.-No.
VFZ 6 behrotest reflux distillation apparatus for the determination of saponification value, 6 positions simultaneously
B00696815
VFZ 12 behrotest reflux distillation apparatus for the determination of saponification value, 12 positions simultaneously
B00696816

Accessories

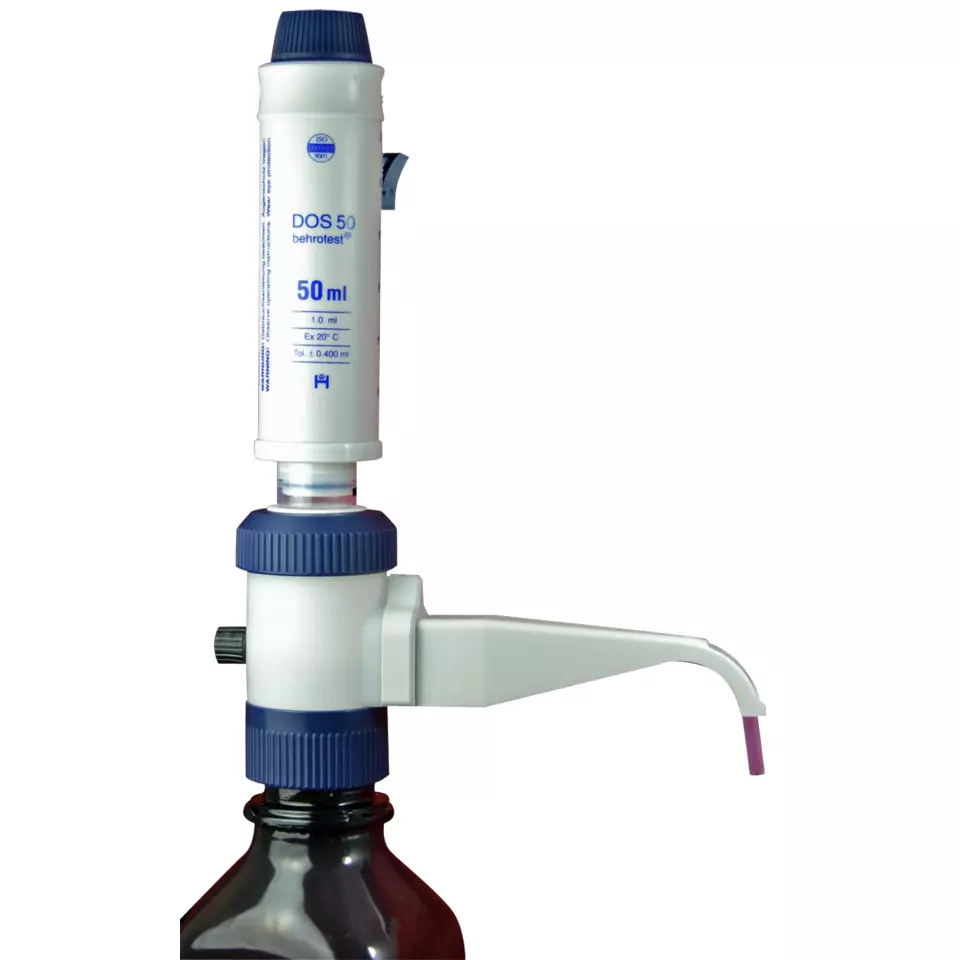

Kjeldahl - Dispenser (DOS) - DOS 50 [B00217810]

DOS 50

behrotest dispenser for dosing H2SO4, 5-50 ml adjustable
B00217810

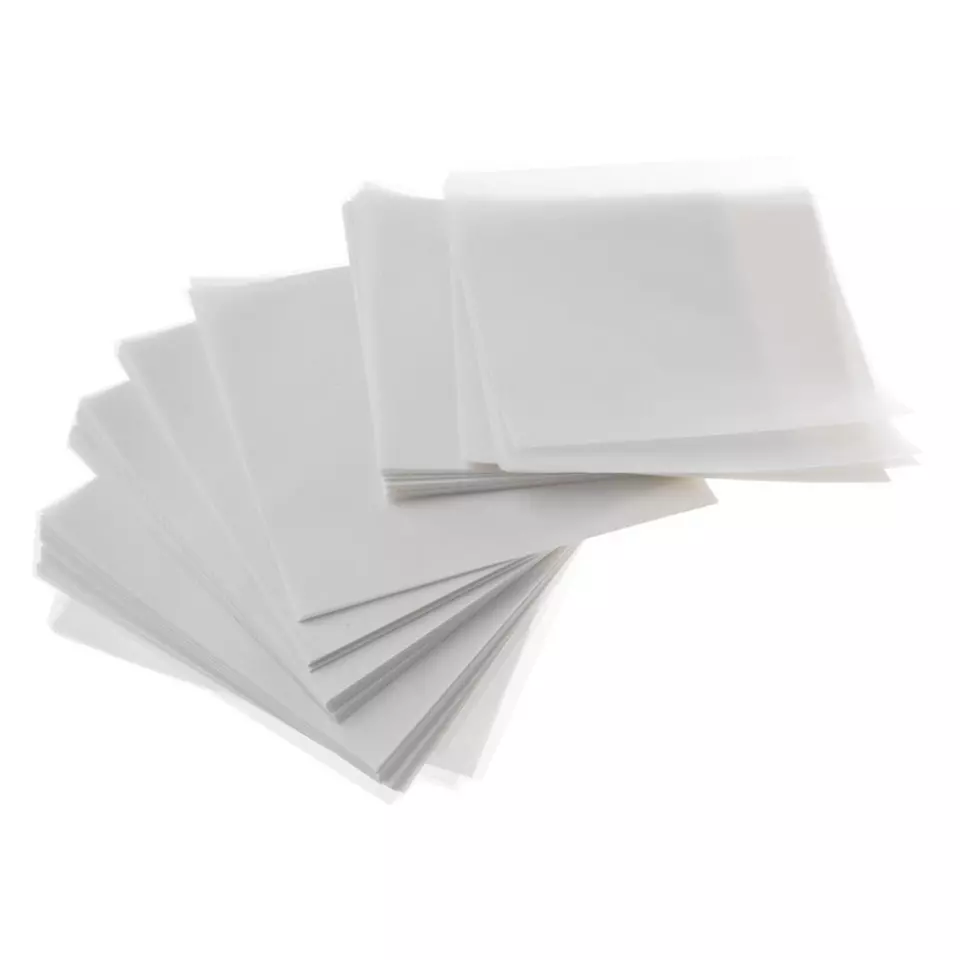

Kjeldahl - Weighing paper (WP) - WP [B00441136]

WP

Weighing paper, pad with 250 sheet, 95 x 110 mm
B00441136
Other laboratory instruments - Monitoring unit (Cooling water monitor) - WD 30 [B00645358]

WD 30

Monitoring unit with two flow sensors and solenoid valve, as well as cables to connect it to the controller (1.5 m)
B00645358

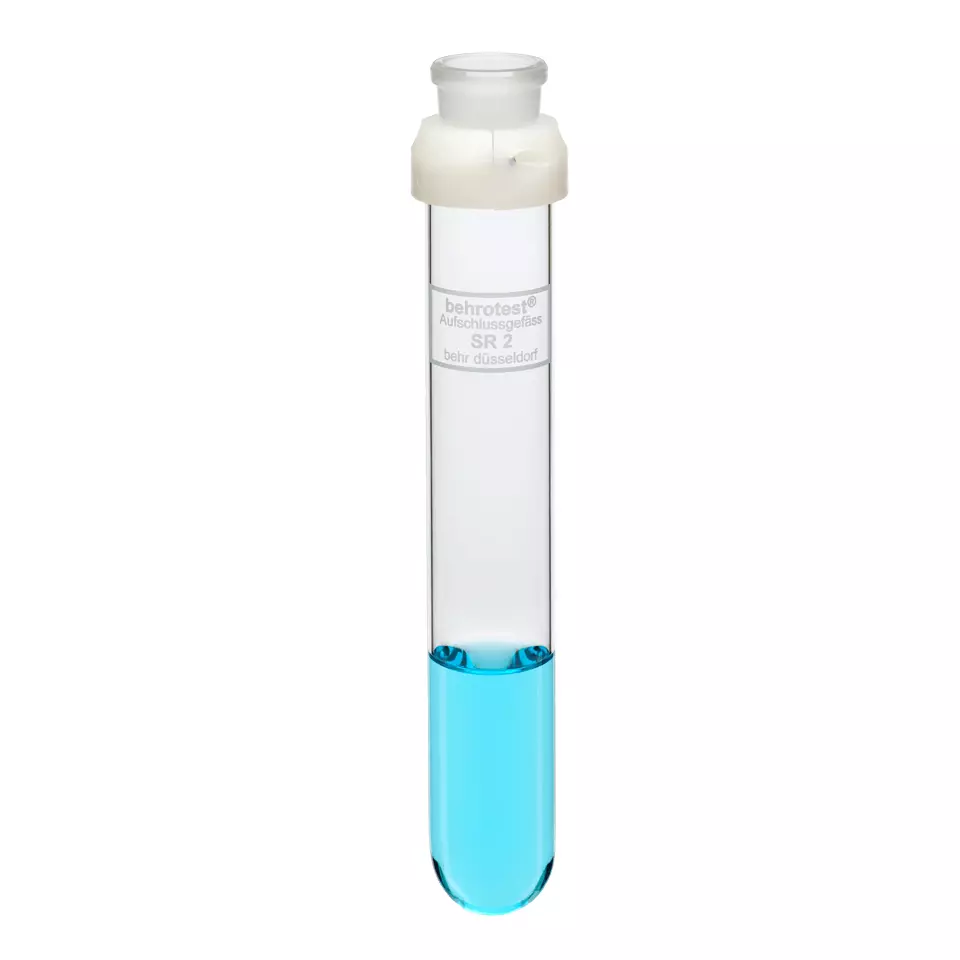

Chemische Bestimmungen - Digestion glass (SR_) - SR 2 [B00217946]

SR 2

Round bottom digestion device SR 2 for heat block thermostat HMD with NS 29, 250 ml
B00217946
Extraktion - Boiling stones (SIST) - SIST 100 [B00217914]

SIST 100

Boiling stones, 100 g
B00217914
Rückflussdestillation - Ball reflux condenser (SFK) - SFK 50 [B00217957]

SFK 50

Ball reflux condenser
B00217957

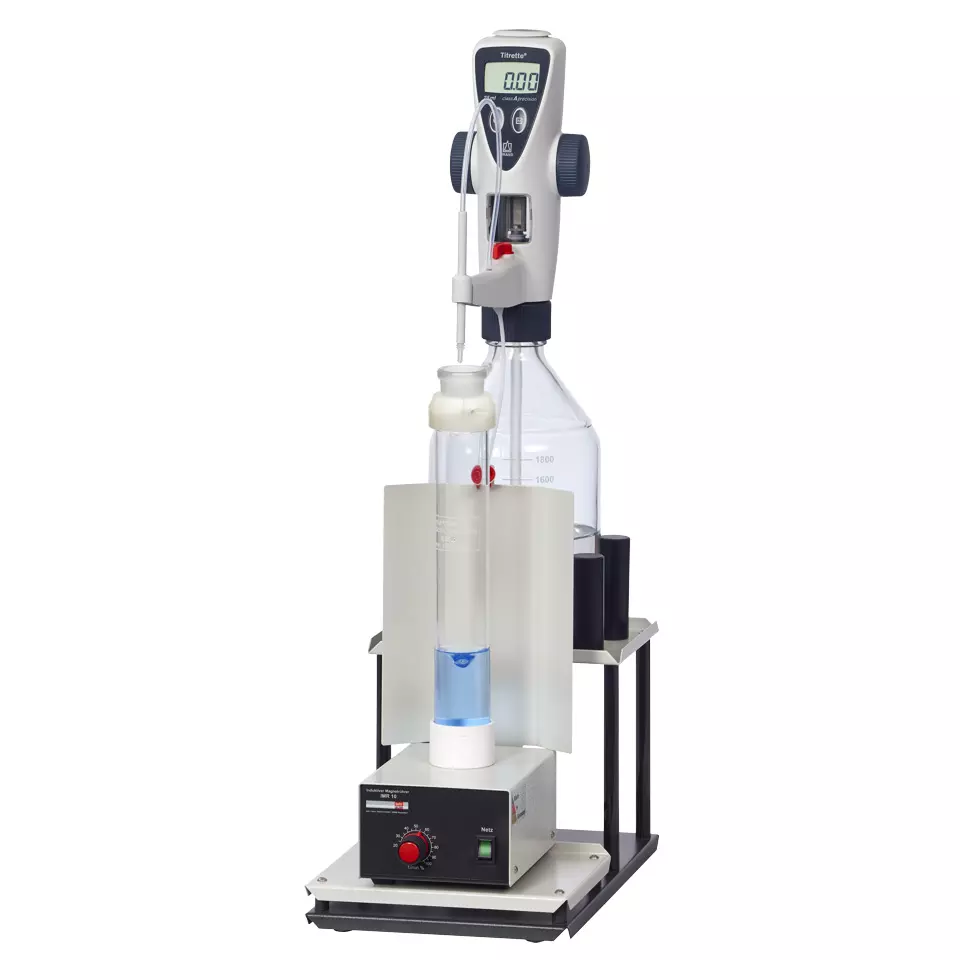

Chemische Bestimmungen - Manual titration station, with digital burette and magnetic stirrer (HTI) - HTI 9 [B00707777]

HTI 9

behrotest manual titration station with digital burette, magnetic stirrer and with fitting holder for SR2 reaction vessels
B00707777

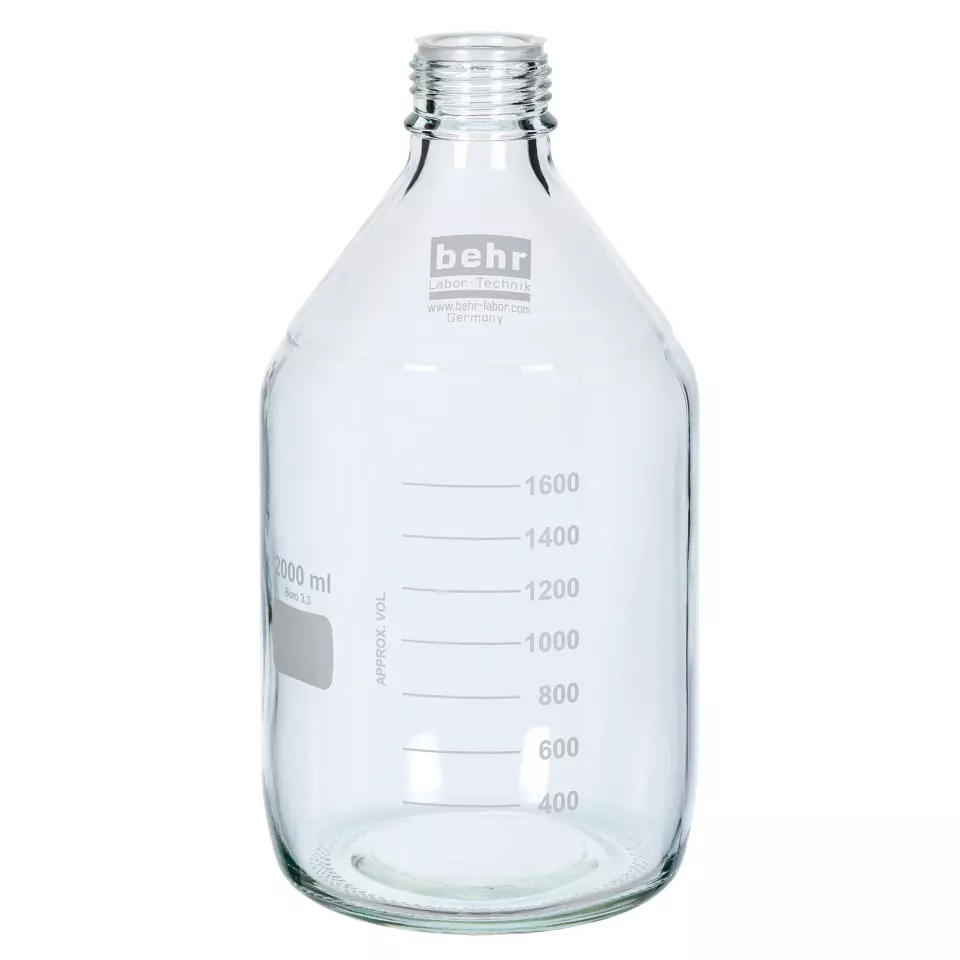

Chemische Bestimmungen - LGF 2000 - LGF 2000 [B00225419]

LGF 2000

Laboratory bottle, ISO thread, 2000 ml with graduation, for manual titration station HTI / STI
B00225419
