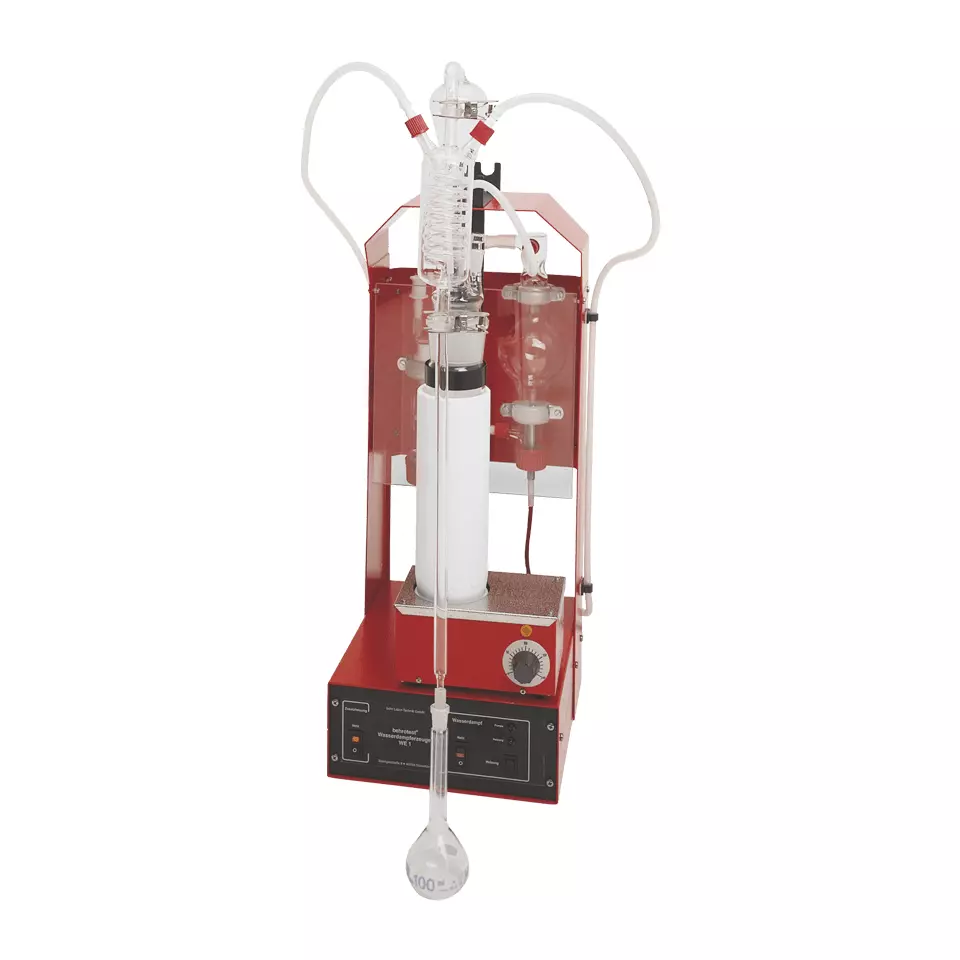

behr WE 1/H

Further determinations - Steam generator (Alcohol)
Areas of use

Beverage industry

Parameter to be analyzed

Alcohol

Sample material

BeerEssencesLiquorPerfumeSpiritsWine

Distillation device

Steam is virtually directly available, i.e. after a period of no more than 30 seconds. The maximum duration of steam addition - and thus the duration of distillation - is not defined by an internal supply vessel, but by the size of the external container used by the user.

Pure water for steam generation is added automatically.

While blowing in the steam, the samples are heated by the heating device in order to avoid condensation in the reaction flasks to increase distillation velocity.

  • Short distillation time
  • The behrotest® steam distillation device reduces distillation times: For a typical distillation of approx. 70 ml, the behrotest® steam generator requires approx. 8 minutes.
  • A standard distillation device makes this quantity of distillate available only after about 30 minutes.
  • Excellent reproducibility
  • For tests with standardized comparative solutions, the behrotest® device proves that steam distillation leads to a considerably higher degree of reproducibility of measuring results than standard distillation.
  • High accuracy
  • With comparative solutions, the behrotest® steam distillation displays with different alcohol concentrations only very slight variations in terms of results.
  • The spread width of the results is much higher in the case of standard distillation. The target requirements are frequently not reached with higher concentrations.
  • Pure water for steam generation is added automatically.
  • While blowing in the steam, the samples are heated by the heating device in order to avoid condensation in the reaction flasks to increase distillation velocity.
  • Adjustable heating output

  Further determinations - Steam generator (Alcohol) - WE 1/H [B00218234]
WE 1/H
Item number B00218234
Packaging quantity 1
Width (in cm) 29.00
Depth (in cm) 38.00
Height (in cm) 67.00
Weight (in kg) 12.80
Power consumption (in W) 400
Current consumption (in A) 3
Cooling water consumption (in l/min) 5
max. distillation time (in min/sample) approx. 10 min. per sample
Supply container any size; recommended: behrotest® can set
  • Beverage industry
Content Filesize last updated
(PDF) Download P Extraktion 8.8 MB 11.05.2023
(PDF) Download P Futtermittelanalytik 1.9 MB 11.05.2023

Article

Art.-No.
WE 1/H behrotest single steam generator with adjustable heating and automatic dist. water addition
B00218234

Accessories

GSAB

behrotest glass set for the determination of alcohol. Distillation in a measurement flask. Incl. pycnometer
B00218232

GSAB-OM

Glassware for determining alcohol content. Distillation into a pycnometer
B00218233
