behr K 12 L, K 20 L, K 24 L, K 40 L

Kjeldahl block digestion systems - Digestion device for 100 ml and 250 ml vessels with lift (K-Block with automatic lift)
Areas of use

Food analysisBeverage industryFeed analysisAgricultural industryEnvironmental analysisCosmetics industryPharmaceuticals industry

Parameter to be analyzed

ProteinNitrogenPhosphorous

Sample material

Waste waterAshBaked goodsBeerSoilsDieselFertilizing agentFish and fish productsMeat and meat productsFeedFeed and raw materialsGrain and mill productsSpicesSludgeCompostPlasticsMaltMilk and milk productsNutritionSludgesWater

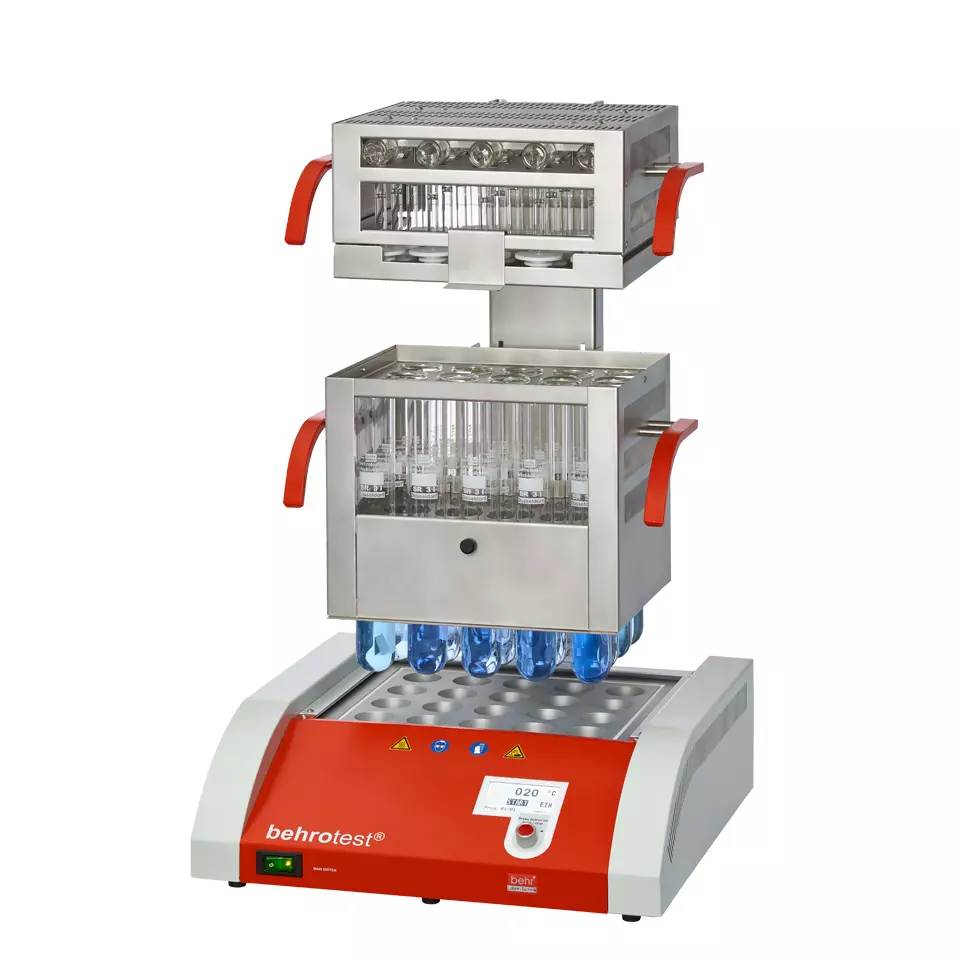

behr series L Kjeldahl block digestion systems are equipped with a fully automatic lift

The user therefore does not need to handle heavy sample units and hot chemicals. The software regulates the sample lift as well as the behrosog 3, thus enabling nearly automatic digestion. At the end of the digestion, the lift moves the entire unit with the rack and extraction hood up. Following a freely programmable cooling / extraction time, he lifts the extraction hood off and moves it into the end position.

  • Temperature profiles and starting time point of digestion are freely programmable
  • behr one-button operation for extremely easy and quick programming
  • USB interface
  • The included Windows software lets the user transfer application-specific time/temperature profiles via the interface bidirectionally between one or more devices (K 12 L, K 20 L, K 24 L and K 40 L) and a PC
  • The progress of the digestion can be observed via the removable viewing door on the insert rack

Kjeldahl block digestion systems - Digestion device for 100 ml and 250 ml vessels with lift (K-Block with automatic lift) - K 12 L [B00632827] Kjeldahl block digestion systems - Digestion device for 100 ml and 250 ml vessels with lift (K-Block with automatic lift) - K 20 L [B00632826] Kjeldahl block digestion systems - Digestion device for 100 ml and 250 ml vessels with lift (K-Block with automatic lift) - K 24 L [B00632825] Kjeldahl block digestion systems - Digestion device for 100 ml and 250 ml vessels with lift (K-Block with automatic lift) - K 40 L [B00632824]
K 12 L K 20 L K 24 L K 40 L
Item number B00632827 B00632826 B00632825 B00632824
Packaging quantity 1
Width (in cm) 42.00 42.00 48.00 48.00
Depth (in cm) 51.00
Height (in cm) 76.50
Weight (in kg) 30.00 34.00 30.00 34.00
Power consumption (in W) 1500 2200 1500 2200
Current consumption (in A) 8 10 8 10
Sample positions 12 20 24 40
Temperature range max. (in °C) 450
Digestion vessel size (in ml) 250 250 100 100

Block digestion system incl. practical lift

  • thanks to the automatic lift, no heavy samples have to be carried
  • Various sample quantities
  • Particularly simple and fast programming

behrotest® standard digestion vessels have standard sizes. This means that they fit in digestion and distillation devices of most manufacturers. It also means that standard digestion vessels of most manufacturers also fit in our behrotest® steam distillation units.

  • Food analysis
  • Beverage industry
  • Feed analysis
  • Agricultural industry
  • Environmental analysis
  • Cosmetics industry
  • Pharmaceuticals industry
Content Filesize last updated
(PDF) Download Flyer Siedeverzug 166.4 KB 24.11.2017
(PDF) Download Prospekt Kjeldahl 3.1 MB 04.04.2018
(PDF) Download Prospekt Futtermittelanalytik 2.9 MB 24.11.2017

Article

Art.-No.
K 12 L Automatic Kjeldahl block digestion system with lift. 12 sample positions for digestion vessels with a volume of 250 ml.
B00632827
K 20 L Automatic Kjeldahl block digestion system with lift. 20 sample positions for digestion vessels with a volume of 250 ml
B00632826
K 24 L Automatic micro Kjeldahl block digestion system with lift. 24 sample positions for digestion vessels with a volume of 100 ml
B00632825
K 40 L Automatic micro Kjeldahl block digestion system with lift. 40 sample positions for digestion vessels with a volume of 100 ml.
B00632824

Accessories

AFS

Antifoam tables, can with 100 pc. for steam distillation
B00217936
Extraktion - Boiling stones (SIST) - SIST 100 [B00217914]

SIST 100

Boiling stones, 100 g
B00217914

WP

Weighing paper, pad with 250 sheet, 95 x 110 mm
B00441136
Kjeldahl - Dispenser (DOS) - DOS 25 [B00661157]

DOS 25

behrotest dispenser for metering sulfuric acid, 2.5-25 ml adjustable without bottle
B00661157

Catalyst tablets

Kjeldahl - Catalyst tablets (KT_) - KT 1 [B00217934]

KT 1

Catalyst tablets (5.0 g K2SO4; 0.5 g CuSO4), can with 1000 pc. (CX)
B00217934
Kjeldahl - Catalyst tablets (KT_) - KT 2 [B00217935]

KT 2

Catalyst tablets (5.0 g K2SO4; 0.15 g CuSO4; 0.15 g TiO2), can with 1000 pc. (CT)
B00217935
Kjeldahl - Catalyst tablets (KT_) - KT 3 [B00217937]

KT 3

Catalyst tablets (3.5 g K2SO4; 0.4 g CuSO4), can with 1000 pc. (CK)
B00217937
Kjeldahl - Catalyst tablets (KT_) - KT 4 [B00490920]

KT 4

Catalyst tablets (3.5 g K2SO4; 3.5 g Se), can with 1000 pc. (ST)
B00490920

Digestion vessels

Kjeldahl - Digestion vessel (SR_) - SR 3i [B00217959]

SR 3i

Round bottom digestion vessel, 250 ml
B00217959

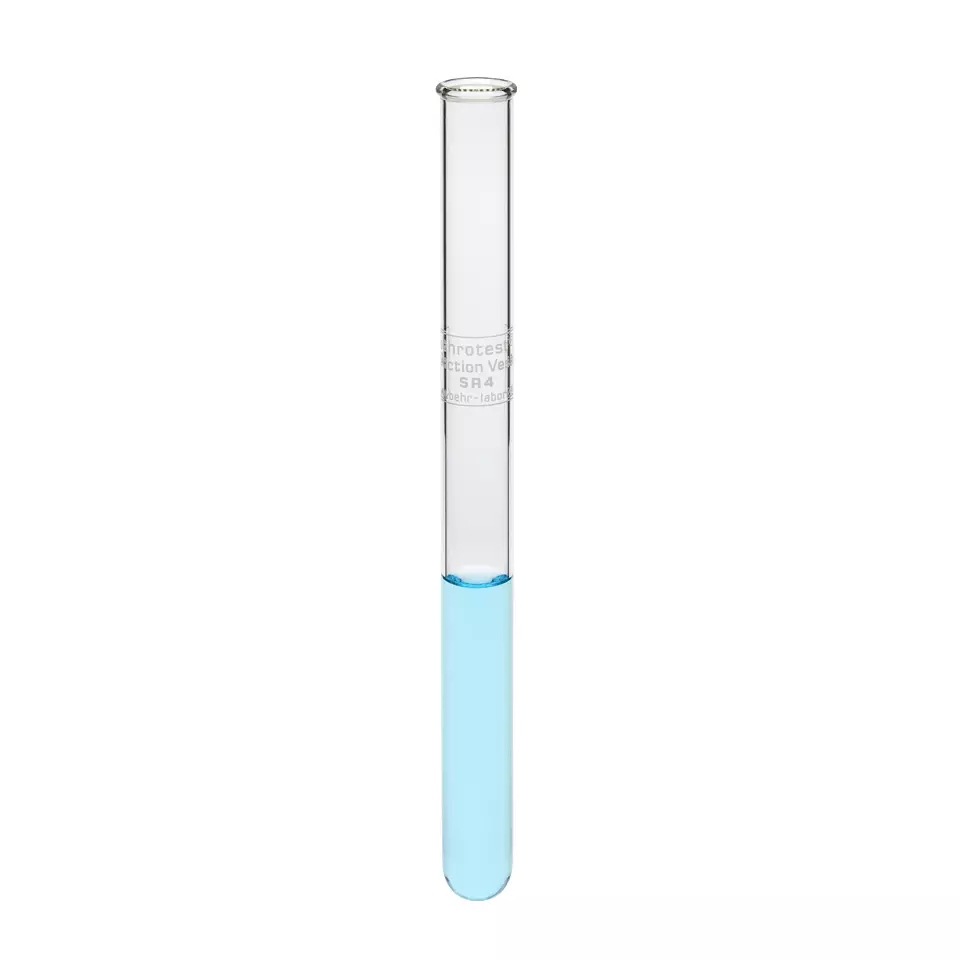

Kjeldahl - Digestion vessel (SR_) - SR 4 [B00217960]

SR 4

Round bottom digestion vessel, 100 ml for micro-Kjeldahl
B00217960
