behr K 8, K 12, K 20

Kjeldahl block digestion systems - Digestion device for 250 ml vessels (K-Block standard)
Areas of use

Food analysisFeed analysisAgricultural industryEnvironmental analysisCosmetics industryPharmaceuticals industry

Parameter to be analyzed

ProteinNitrogenPhosphorous

Sample material

Waste waterAshBaked goodsBeerSoilsDieselFertilizing agentFish and fish productsMeat and meat productsFeedFeed and raw materialsGrain and mill productsSpicesSludgeCompostPlasticsMaltMilk and milk productsNutritionSludgesWater

Block digestion systems with high-quality non-corrosive block casing made of stainless steel.

Complete system with digestion vessel, frame and extraction hood. With 8, 12 or 20 sample positions for standard Kjeldahl digestion vessels with a volume of 250 ml.

The included Windows software lets the user transfer application-specific time/temperature profiles via the interface bidirectionally between one or more devices and a PC. A library with standard applications is already included on the CD. Via the RS232 interface temperature data can also be transferred from the device to the PC during operation. If needed, the user can save the data and print them out as a graph.

Stable and robust design. The block casing as well as the rack for the digestion devices

and the hood are made of acid-resistant, non-corrosive stainless steel. Complete system with digestion vessel, frame and extraction hood.

  • High-performance heating and extraction hood with exhaust collector
  • The progress of the digestion can be observed via the removable viewing door on the insert rack
  • behr one-button operation for extremely easy and quick programming
  • Menu navigation in country language
  • 10 freely configurable programs for block temperature and digestion time
  • Storeable applications
  • USB interface

Kjeldahl block digestion systems - Digestion device for 250 ml vessels (K-Block standard) - K 8 [B00632822] Kjeldahl block digestion systems - Digestion device for 250 ml vessels (K-Block standard) - K 12 [B00605456] Kjeldahl block digestion systems - Digestion device for 250 ml vessels (K-Block standard) - K 20 [B00632831]
K 8 K 12 K 20
Item number B00632822 B00605456 B00632831
Packaging quantity 1
Width (in cm) 42.00
Depth (in cm) 51.00
Height (in cm) 76.50
Weight (in kg) 28.00 30.00 34.00
Power consumption (in W) 1000 1500 2200
Current consumption (in A) 5 8 10
Sample positions 8 12 20
Temperature range max. (in °C) 430
Digestion vessel size (in ml) 250
Programs 10
Controller Nein
  • behr one-button operation for extremely easy and quick programming
  • Menu navigation in country language
  • 10 freely configurable programs for block temperature and digestion time
  • Storeable applications
  • Simple and fast programming
  • Non-corrosive casing
  • Various sample quantities
  • Removable viewing door

behrotest® standard digestion vessels have standard sizes. This means that they fit in digestion and distillation devices of most manufacturers. It also means that standard digestion vessels of most manufacturers also fit in our behrotest® steam distillation units.

  • Food analysis
  • Feed analysis
  • Agricultural industry
  • Environmental analysis
  • Cosmetics industry
  • Pharmaceuticals industry
Content Filesize last updated
(PDF) Download Flyer Siedeverzug 166.4 KB 24.11.2017
(PDF) Download Prospekt Kjeldahl 3.1 MB 04.04.2018
(PDF) Download Prospekt Futtermittelanalytik 2.9 MB 24.11.2017

Article

Art.-No.

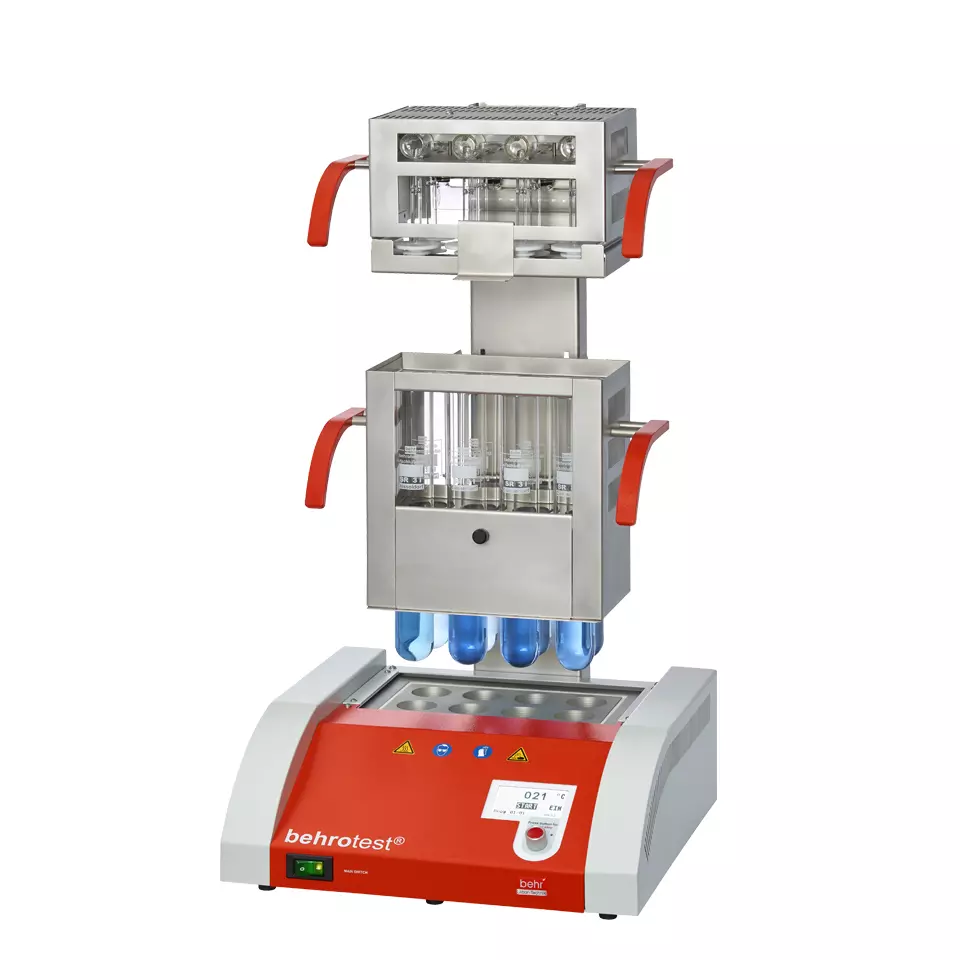

K 8 Kjeldahl block digestion system with 8 sample positions for digestion vessels with a volume of 250 ml
B00632822

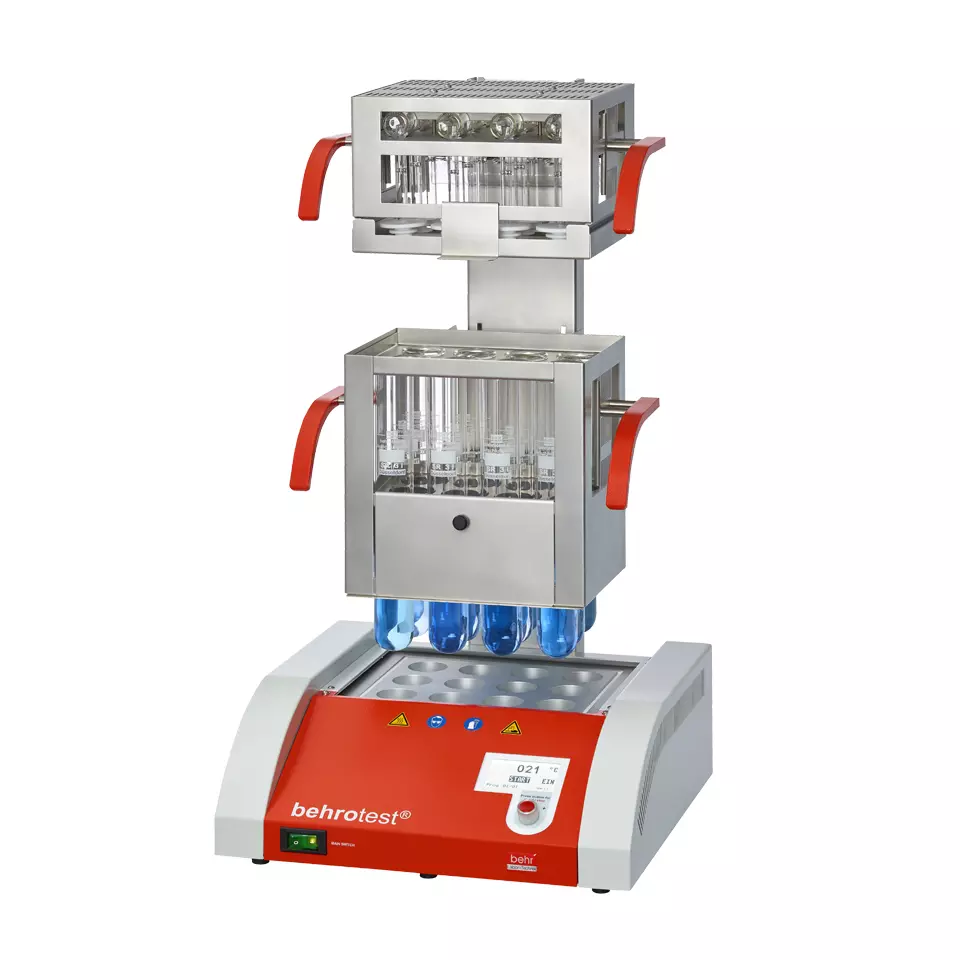

K 12 Kjeldahl block digestion system with 12 sample positions for digestion vessels with a volume of 250 ml
B00605456

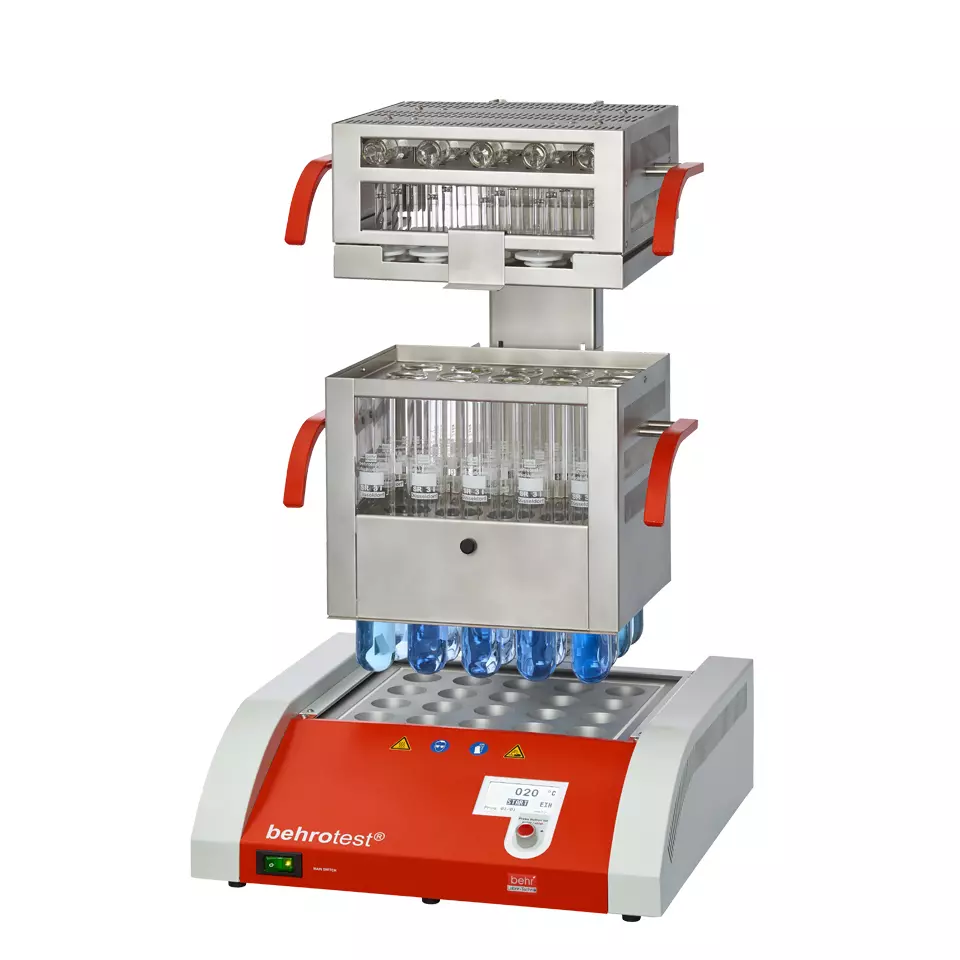

K 20 Kjeldahl block digestion system with 20 sample positions for digestion vessels with a volume of 250 ml
B00632831

Accessories

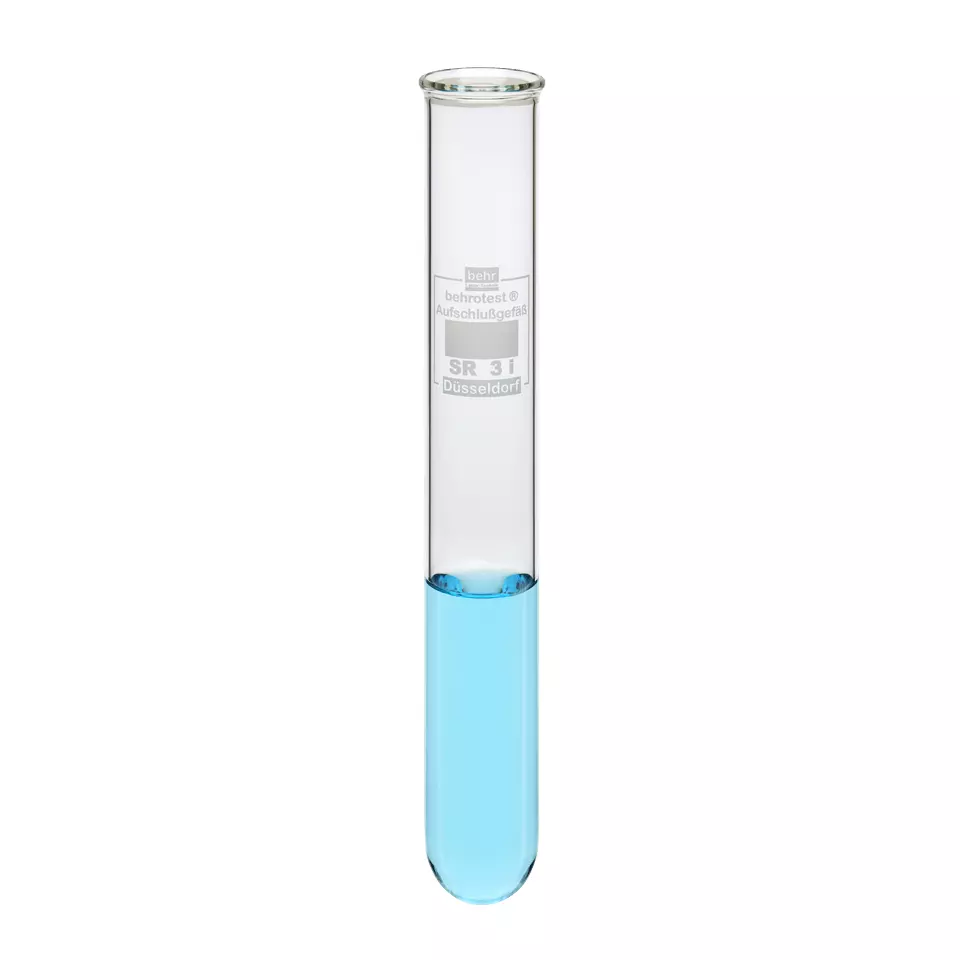

Kjeldahl - Digestion vessel (SR_) - SR 4 [B00217960]

SR 4

Round bottom digestion vessel, 100 ml for micro-Kjeldahl
B00217960

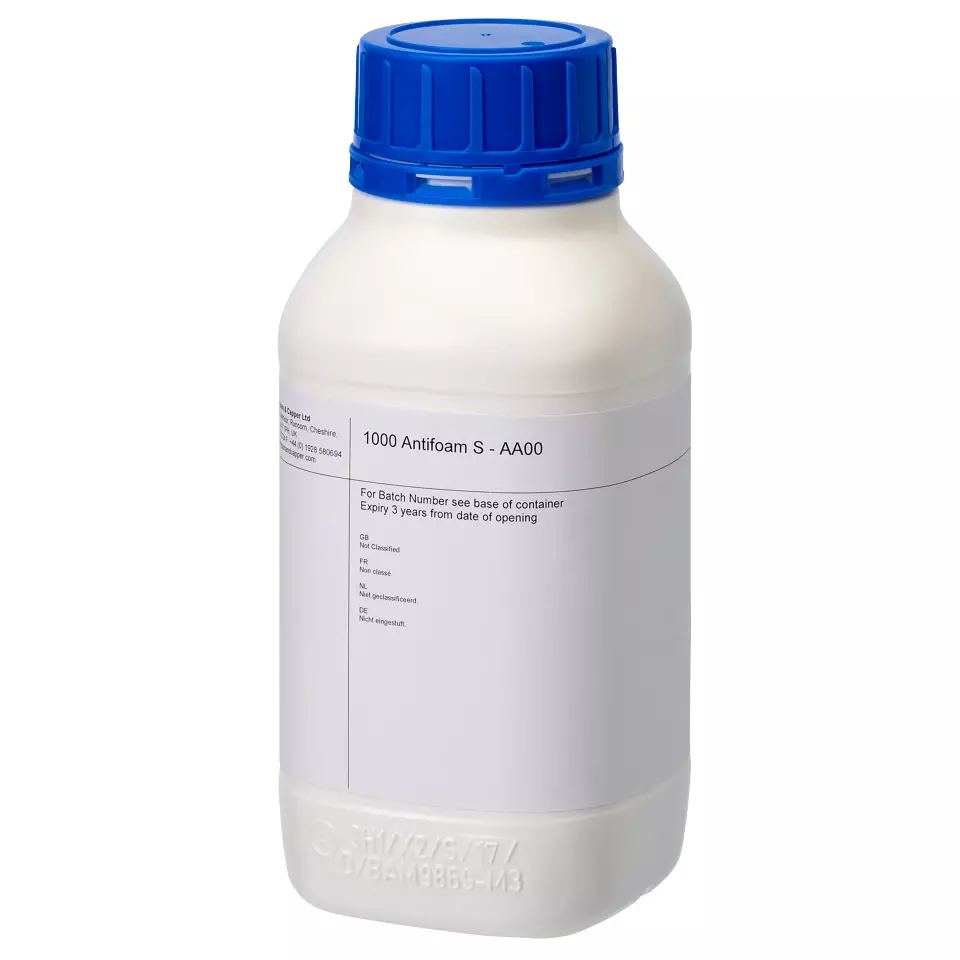

AFS

Antifoam tables, can with 100 pc. for steam distillation
B00217936
Extraktion - Boiling stones (SIST) - SIST 100 [B00217914]

SIST 100

Boiling stones, 100 g
B00217914

WP

Weighing paper, pad with 250 sheet, 95 x 110 mm
B00441136

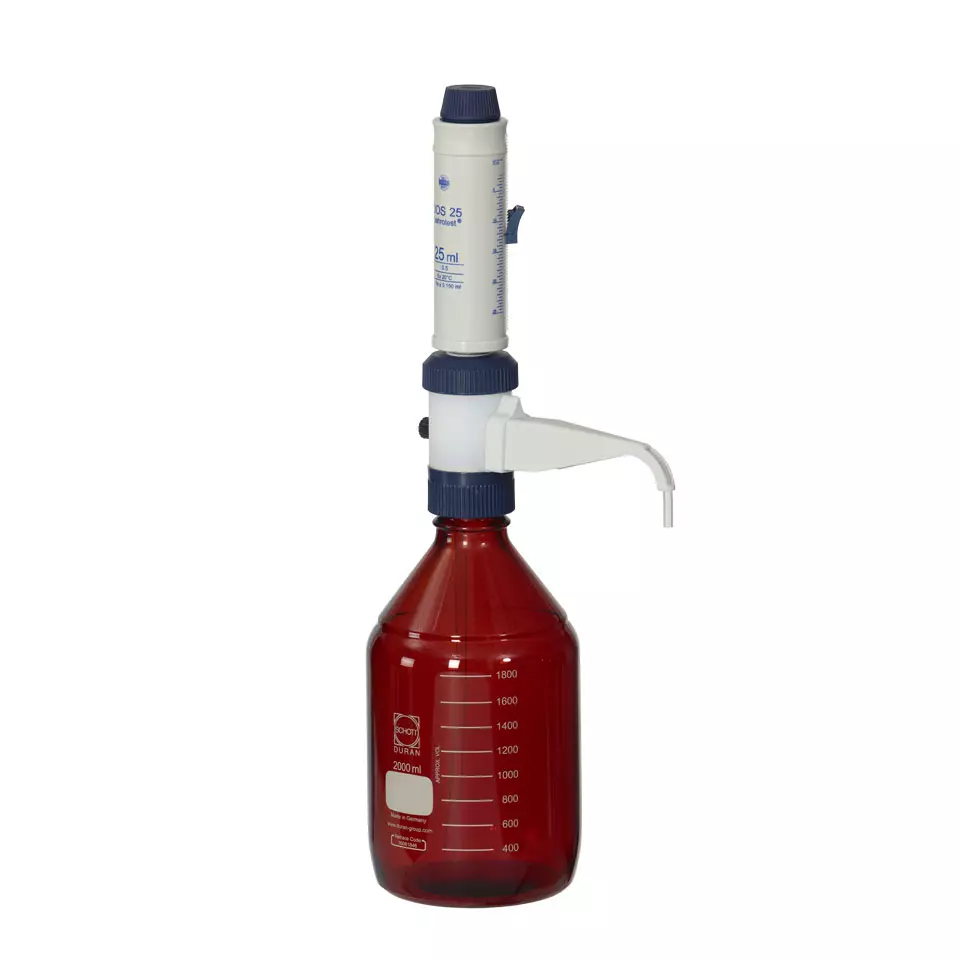

Kjeldahl - Dispenser (DOS) - DOS 25 [B00661157]

DOS 25

behrotest dispenser for metering sulfuric acid, 2.5-25 ml adjustable without bottle
B00661157

Catalyst tablets

Kjeldahl - Catalyst tablets (KT_) - KT 1 [B00217934]

KT 1

Catalyst tablets (5.0 g K2SO4; 0.5 g CuSO4), can with 1000 pc. (CX)
B00217934
Kjeldahl - Catalyst tablets (KT_) - KT 2 [B00217935]

KT 2

Catalyst tablets (5.0 g K2SO4; 0.15 g CuSO4; 0.15 g TiO2), can with 1000 pc. (CT)
B00217935
Kjeldahl - Catalyst tablets (KT_) - KT 3 [B00217937]

KT 3

Catalyst tablets (3.5 g K2SO4; 0.4 g CuSO4), can with 1000 pc. (CK)
B00217937
Kjeldahl - Catalyst tablets (KT_) - KT 4 [B00490920]

KT 4

Catalyst tablets (3.5 g K2SO4; 3.5 g Se), can with 1000 pc. (ST)
B00490920
