behr ASE-IR

Kjeldahl complete systems - Premium Kjeldahl workstation (Premium)
Areas of use

Parameter to be analyzed

Sample material

Complete configuration for nitrogen determination: Workstations type ASE

• Programmable digestion units for 12 samples (Infrared: InKjel 1225 TCP with temperature

control) or 20 samples (block digestion: K 20) simultaneous.

• Standard digestion in vessels à 250 ml.

• Scrubber (behrosog) with additional cooling system (ACS).

• Steam distiller (S 5).

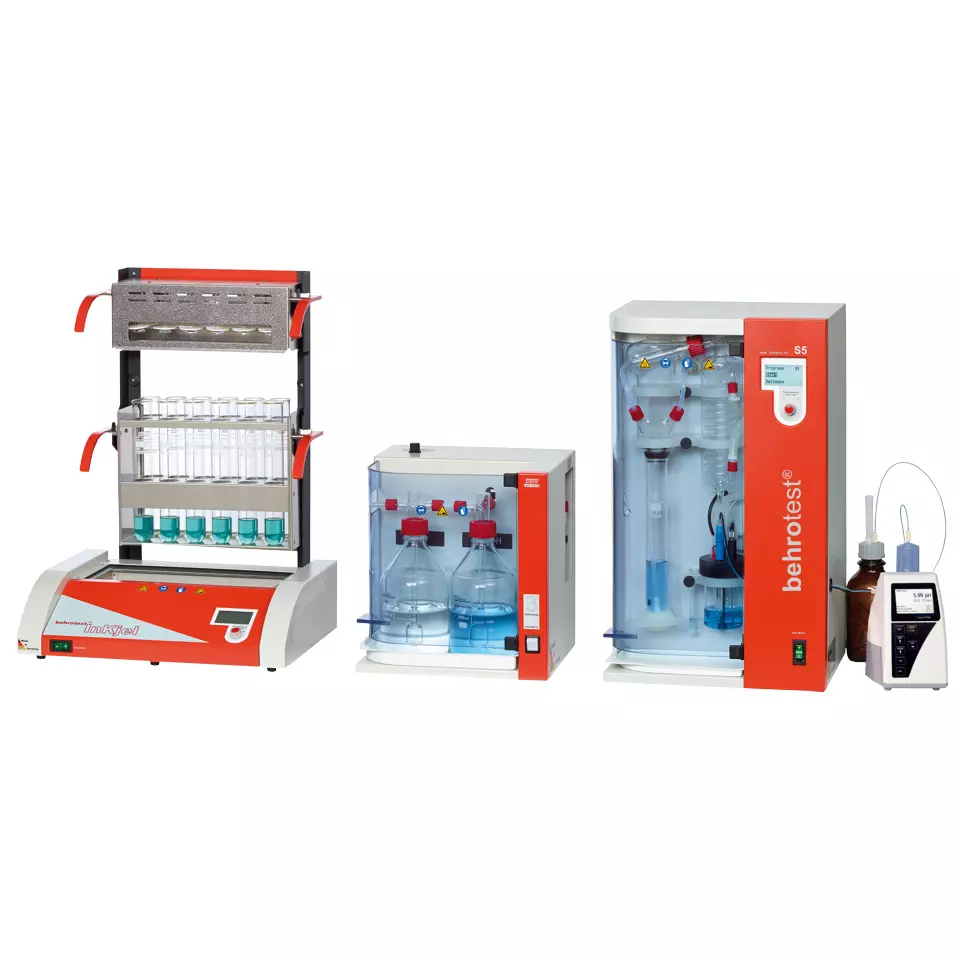

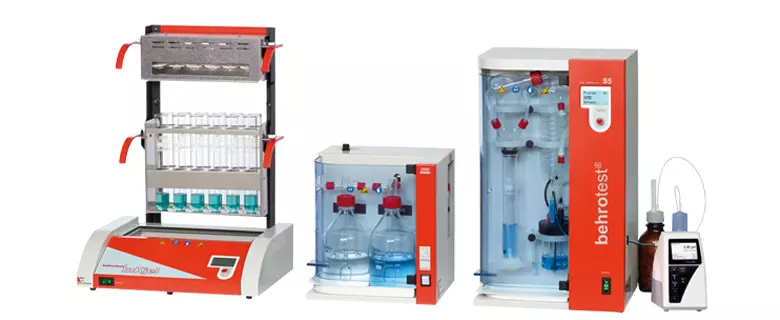

In addition, it is possible to connect an external titrator (e.g. TB 2 as shown in the picture)

  • High-performance heating and extraction hood with exhaust collector.
  • behr one-button operation for extremely easy and quick programming
  • Menu navigation in country language
  • 25 freely configurable programs for block temperature and digestion time
  • Storeable applications

  Kjeldahl complete systems - Premium Kjeldahl workstation (Premium) - ASE-IR [B00637681]
ASE-IR
Item number B00637681
Packaging quantity 1
Packaging unit Set

Premium high-performance configuration

  • Particularly simple and fast programming

InKjel 1225 TCP

Digestion with infrared

Complete system with multi-level console, fume extraction unit, sample rack and glass digestion vessels.

Rapid sample heating by means of direct heating via the infrared heater.

Quartz infrared heaters reach a temperature of 830°C in 1 min.

Various application possibilities: Rack for reaction vessels with 250 ml, 500 ml and 750 ml.

With 500 ml and 750 ml vessels also suitable for nitrogen determination in water analysis.

Easy conversion for various vessel sizes through the exchange of rack and fume extraction unit.

Quick and problem-free digestion also for difficult samples: 25 freely configurable programs for block temperature and digestion time

behr one-button operation for extremely easy and quick programming

Menu navigation in country language

behrosog 3

Efficient extraction system

Extremely environmental friendly

No connection to water supply needed

infinite regulation of air flow quantity 16 ... 40 l/min

easy exchange of liquids through simply emptying of glass vessels

PTFE-coated double-head membrane pump

Integrated droplet separator

Gas wash bottle 2000 ml for cooling hot gases

Gas wash bottle 2000 ml for neutralizing

On/off switch outside hazard zone

Transparent safety door

Removable safety drip tray

S5

Safe and high-performance steam distillation units

Door contact safety switch that is automatically triggered in the event of overload or short circuit

Mechanical overpressure safety valve against excessive pressure in the steam generator

Vessel monitoring (no distillation possible if no vessel has been inserted)

Door contact switch that automatically deactivates the distillation unit if the door is open

Resettable overtemperature thermostat (in the case of water shortage in the steam generator)

Cooling circuit monitoring by means of pressure switch

Temperature-regulated steam heating phase and pressure control via solenoid valve

Content Filesize last updated
(PDF) Download P Kjeldahl 3.4 MB 11.05.2023
(PDF) Download P Futtermittelanalytik 1.9 MB 11.05.2023

Article

Art.-No.
ASE-IR Kjeldahl premium - Complete configuration for nitrogen determination and connection option for external titrator (e.g. TB 2)
B00637681

Accessories

Kjeldahl - Module (TB 2) - TB 2 [B00645403]

TB 2

Titration module for connection to the steam distillation device S 5, with Kjeldahl method and evaluation, printer upon request
B00645403
